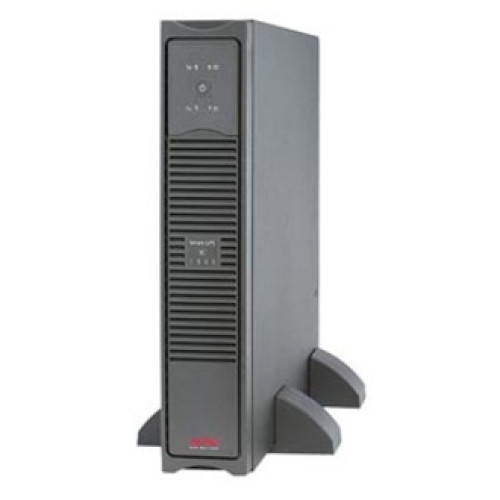

APC Smart-UPS Series UPS
Part #: SC1000 | SKU: 32271

APC Rack Automatic Transfer Switch , Input: 208V , Input Connections: NEMA L6-20P , Cord Length: 6 feet ( 1.83 meters ) , Output: 208V , Output Connections: NEMA L6-20R

APC Smart-UPS Series UPS

Part Details: Smart-UPS SC 1000VA 120V

Need a different version of the APC Smart-UPS Series Accessory? View all 57 configurations

Additional Information

Manufacturer	No
Model Name	Smart-UPS Series
Product Condition	No

General Information

Product Type: Line-interactive UPS
Product Series: SC
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Name: Smart-UPS SC 1000VA Rack Mountable/Tower UPS
Product Line: Smart-UPS

Technical Information

Receptacles: 6 x NEMA 5-15R
Plug/Connector Type: NEMA 5-15P
Cord Length: 6 ft
Dataline Protection: RJ-45

Physical Characteristics

Height: 3.5"
Width: 17"
Depth: 18.2"
Rack Height: 2U
Form Factor: Tower
Weight (Approximate): 36 lb
Color: Gray

Other

Package Contents:
- Smart-UPS SC 1000VA 120V - 2U Rackmount/Tower
- CD with software
- Documentation CD
- Rack Mounting Brackets
- Smart UPS signalling RS-232 cable
- USB cable
- User Manual
- Smart-UPS SC 1000VA 120V - 2U Rackmount/Tower
- CD with software
- Documentation CD
- Rack Mounting Brackets
- Smart UPS signalling RS-232 cable
- USB cable
- User Manual
Certifications & Standards:
- CSA
- FCC Part 15 Class A
- UL 1449
- UL Listed
Additional Information:
- Automatic self-test
- Predictive failure notification
- Adjustable voltage-transfer points
- Automatically starts up the connected equipment upon the return of utility power

Controls/Indicators

Status Indicators:
- LED status displays:
- On Line
- On Battery
- Replace Battery
- Overload

Power Description

Load Capacity (VA): 1 kVA
Load Capacity (Watt): 600 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC
Surge Energy Rating: 445 J
Waveform Type: Step Simulated Sine Wave

Battery Information

Maximum Battery Recharge Time: 8 Hour
Backup/Run Time (Half Load): 19.70 Minute
Backup/Run Time (Full Load): 7.40 Minute
Battery Characteristics: Spill-proof, Maintenance-free
Battery Chemistry: Sealed Lead Acid

Management

Alarm:
- On Battery
- Low Battery
- Overload

Environmental Conditions

Temperature: 113°F (45°C)
Thermal Dissipation: 180 BTU/h
Sound Emission: 45 dB(A)

Warranty

Limited Warranty: 2 Year

Extended Details
