Additional Information
| Manufacturer | No |
|---|---|
| Model Name | Back-UPS Series |
| Product Condition | No |
Back-UPS Series Specs
General Information
- Product Type: Automatic Transfer Switch
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

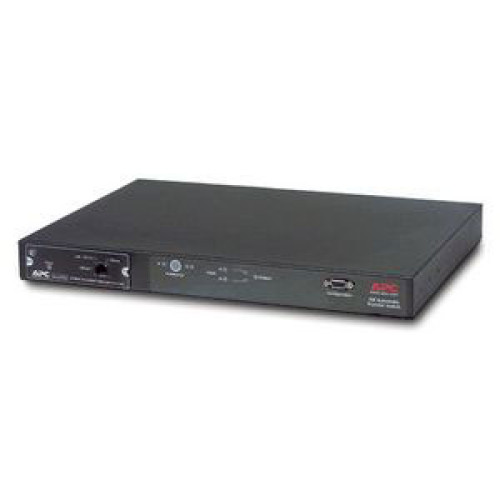

- Product Name: 1U Rack Mountable 16A Automatic Transfer Switch
Technical Information
- Receptacles: 1 x NEMA L21-20
- Plug/Connector Type: NEMA L21-20P
- Protection Type: Overload
Physical Characteristics
- Height: 1.8"
- Width: 17"
- Depth: 12"
- Form Factor: 1U Rack-mountable
- Weight (Approximate): 15 lb
- Power Cord/Cable:
- 3 ft Input
- 3 ft Output
Power Description
- Current:
- 16 A Total Current Draw Per Phase
- 16 A Input Current Per Phase
- 16 A Line Current Per Phase
- Input Voltage: 110 V AC
- Output Voltage: 208 V AC 3-phase Nominal
- Input Voltage Range:
- 100 V AC to 120 V ACAcceptable
- 208 V AC3-phase Nominal
- Frequency:
- 50 Hz
- 60 Hz
Other
- Package Contents:
- 1U Rack Mountable 16A Automatic Transfer Switch
- Rack Mounting Brackets
- 1U Rack Mountable 16A Automatic Transfer Switch
- Rack Mounting Brackets
- Certifications & Standards:
- cUL Listed
- FCC Part 15 Class A
- UL Listed
- VCCI
Environmental Conditions
- Altitude:
- 0 ft to 10000 ft Operating
- 0 ft to 50000 ft Storage
- Humidity:
- 0% to 95% Relative Humidity Storage
- 0% to 95% Relative Humidity Operating
- Temperature:
- -13°F (-25°C) to 149°F (65°C) Storage
- 32°F (0°C) to 113°F (45°C) Operating
Warranty
- Limited Warranty: 2 Year
- Parts Warranty/Labor: 2 Year
