Part #: 791.ADE00.70L0 | SKU: AOP260888

Products and parts from AOPEN.

AOPEN Products

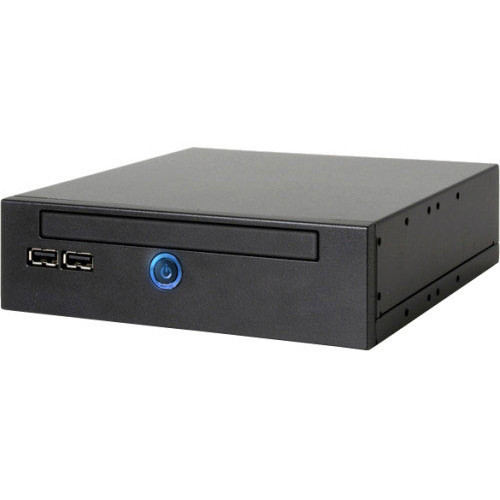

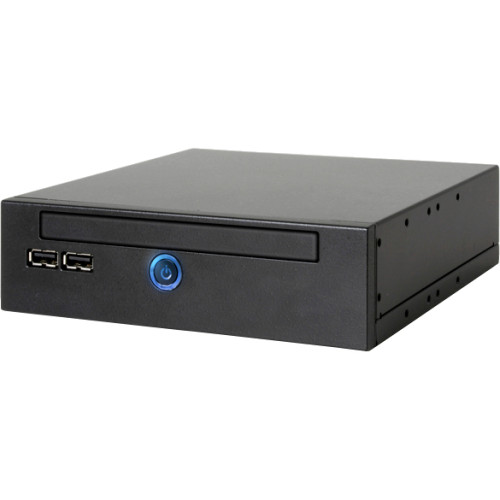

Part Details: AOpen Digital Engine DE7000 Barebone System - NVIDIA MCP7A-LP Chipset - Socket P PGA-478 - 1 x Processor Support - 8 GB DDR3 SDRAM DDR3-1333/PC3-10600 Maximum RAM Support - 2 Total Memory Slots - Serial ATA - DVD-Reader - NVIDIA GeForce 9300 Integrated - 1 2.5" Bay(s) - HDMI - Network (RJ-45) - Processor Support (Celeron M, Core 2 Duo) - 1 x 90 W

Need a different version of the AOPEN Accessory? View all 167 configurations

Additional Information

Manufacturer	AOPEN
Model Name	Parts
Product Condition	No

General Information

Product Type: Barebone System
Brand Name: AOpen
Manufacturer: AOpen, Inc
Product Model: DE7000
Product Name: Digital Engine DE7000 Barebone System
Product Line: Digital Engine

Physical Characteristics

Height: 1.9"
Width: 6.5"
Depth: 6.5"
Weight (Approximate): 2.54 lb

Interfaces/Ports

eSATA: Yes
HDMI: Yes
VGA: Yes
Total Number of USB Ports: 6
Network (RJ-45): Yes
Audio Line In: Yes
Audio Line Out: Yes
Number of USB 2.0 Ports: 6
Number of USB 3.0 Ports: 0

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: WEEE
Package Contents:
- Digital Engine DE7000 Barebone System
- 1 x DE-SATA card
- 1 x User Guide
- 1 x Driver CD
- 1 x 90W Adapter and Power Cord
- 1 x L type Holder with 8 pcs of M3 screw
- 4 x M3 - L4 screws
- 4 x M2 - L2 screws
- 1 x cable clamp
- Digital Engine DE7000 Barebone System
- 1 x DE-SATA card
- 1 x User Guide
- 1 x Driver CD
- 1 x 90W Adapter and Power Cord
- 1 x L type Holder with 8 pcs of M3 screw
- 4 x M3 - L4 screws
- 4 x M2 - L2 screws
- 1 x cable clamp
Certifications & Standards:
- FCC
- CE
- UL
- CB
- CCC

Processor & Chipset

Front Side Bus: 1066 MHz
Chipset Manufacturer: NVIDIA
Chipset Model: MCP7A-LP
Number of Processors Supported: 1
Processor Socket: Socket P PGA-478
Processor Supported:
- Celeron M
- Core 2 Duo
64-bit Processing: Yes
Processor Technology:
- Virtualization Technology
- Trusted Execution Technology
- Enhanced SpeedStep Technology

Software

Operating System Supported:
- Windows 7 Professional
- Windows 7 Ultimate
- Windows XP
- Windows XP Embedded
- Windows Embedded Standard 2009
- Windows Embedded Standard 7

Power Description

Number of Power Supplies Installed: 1
Maximum Power Supply Wattage: 90 W
Input Voltage:
- 110 V AC
- 220 V AC

I/O Expansions

Number of External 5.25" Bays: 1
Number of Total Expansion Bays: 2
Number of Total Expansion Slots: 1
Number of Internal 2.5" Bays: 1
Number of Mini PCI Express Slots: 1

Memory

Memory Standard: DDR3-1333/PC3-10600
Memory Technology: DDR3 SDRAM
Maximum Memory: 8 GB
Number of Total Memory Slots: 2

Display & Graphics

Graphics Controller Manufacturer: NVIDIA
Graphics Controller Model: GeForce 9300

Storage

Optical Drive Type: DVD-Reader
Optical Media Supported: DVD-ROM

Controllers

Controller Type: Serial ATA

Network & Communication

Ethernet Technology: Gigabit Ethernet
