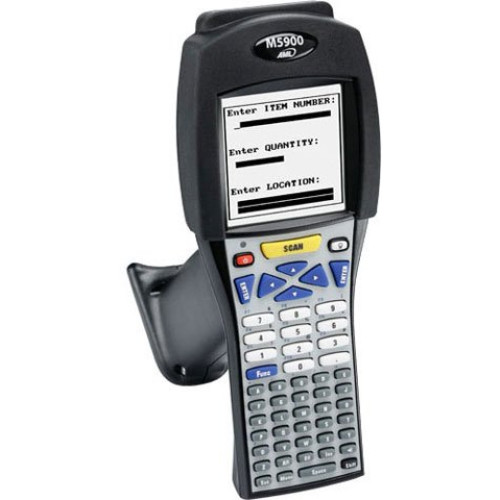

AML M5900i Mobile Computer
Part #: M5900I-0101-0 | SKU: 29883

With big business functionality at a small business price, the AML M5900i portable data terminal can help streamline and improve your business operations, while keeping IT costs low. The M5900i features 32MB RAM/16MB flash ROM memory (with 10MB of user-available non-volatile memory), a rapid 200 MHz ARM9 processor, a rechargeable Lithium-Ion battery, a backup lithium battery, large graphical backlit LCD display, and your choice of 55-key alphanumeric or 35-key numeric keypad. It also comes with a SQLite database engine for powerful handling of data files. The M5900i also features a forward-scanning pistol grip handle and protective rubber boot that enhances the drop rating to 5 ft. (1.5m) onto concrete.

AML M5900i Mobile Computer

Part Details: Industrial Batch Kit with standard laser scanner and 32MB/16MB. Charger not included. See accessories.

Need a different version of the AML M5900i Mobile Computer? View all 26 configurations

Additional Information

Data Collection Type	Batch
Display Resolution	No
Drop Rating	No
IP Rating	No
Manufacturer	No
Model Name	M5900i
Operating System	No
Product Condition	No
RAM Memory	No
Scanner Type	Laser

M5900i Specs (pdf)

Technical Information

Operating System: Linux Embedded
Processor: ARM9 200MHz
Data Collection Type: Batch
Scanner Type: Laser Standard Range
Symbologies Supported:
- Bookland EAN
- Codabar
- Code 11
- Code 39
- Code 39 Full ASCII
- Code 93
- Code 128
- EAN-8
- EAN-13
- EAN-128
- Interleaved 2 of 5
- MSI/PLESSEY
- RSS-Expanded
- RSS-Limited
- RSS-14
- UPC/EAN Supplementals
- UPC-A
- UPC-E

General Information

Manufacturer:
- AML
- American Microsystems, Ltd
Product Name: M5900i Portable Data Terminal

Physical Characteristics

Display: Monochrome Backlight - 20 Lines x 20 Characters - LCD
Display Resolution: 160 x 160
Keyboard: 55 Key Alphanumeric Integrated
Battery Capacity: 2200 mAh
Battery Type: Lithium Ion - Included
Weight: 25 oz

Environmental Conditions

Environmental Sealing: IP51
Temperature:
- -10Â°C (14Â°F) to 50Â°C (122Â°F) Operating
- -25Â°C (-13Â°F) to 50Â°C (122Â°F) Storage
Humidity: 5 to 95% Non-condensing
Electrostatic Discharge (ESD):
- 15kVdc Air Discharge
- 4kVdc Contact Discharge
Drop Spec: 5' To Concrete

Agency Approvals

Agency Approvals:
- EMI/RFI: FCC Part 15 Class A Laser Safety: CDRH Class II IEC Class 2
- EMI/RFI:FCC Part 15 Class ALaser Safety:CDRH Class IIIEC Class 2

Other

Package Contents:
- M5900i Portable Data Terminal Battery Documentation CD with Program Generator USB Cable
- M5900i Portable Data TerminalBatteryDocumentation CD with Program GeneratorUSB Cable

Memory

RAM Memory: 32MB
Flash Memory: 16MB

Warranty

Manufacturer Warranty: 1 Year(s) Limited

Extended Details
