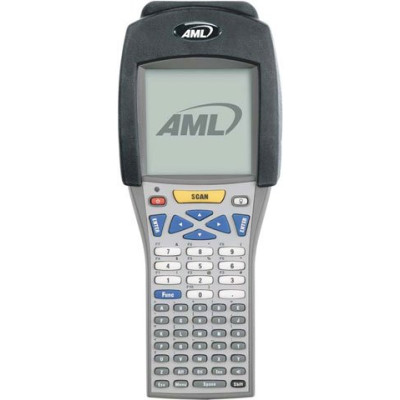

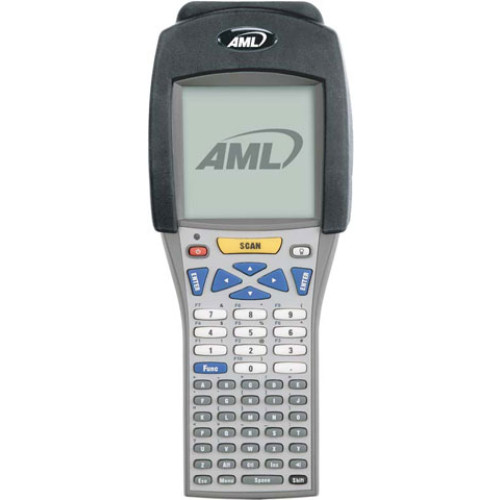

AML M71V2 Mobile Computer

Built tough yet optimized for cost-effectiveness, the AML M71V2 wireless terminal is an ideal solution for real-time, information-intensive data capture in retail, distribution, warehousing and manufacturing applications. Featuring the same form, fit and function as the popular M7100 wireless terminal, the M71V2 drops easily into existing wireless applications where M7100 terminals are deployed with minimal impact to the end user. The M71V2 is richly configured with power-packed features to optimize operational efficiency and productivity. Powered by the fast Samsung S3C2410 ARM9 processor, the M71V2 is equipped with 32MB RAM and 16MB Flash ROM for ample storage capacity. Its internal radio supports IEEE 802.11b WLAN connectivity for real-time, high-rate data transfer between wireless operators and host applications. Extended operation is ensured by the M71V2's enhanced power management, which supports eight-hour work shifts without recharging.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Rugged, ergonomic design
Samsung ARM9 processor
Integrated IEEE 802.11b radio with up to 11Mbps throughput
32MB RAM/16MB ROM
WEP and WPA/WPA2 security
Graphical 160 x 160 backlit LCD display with multi-font capability
55 key alphanumeric keypad
Rechargeable, high capacity 2600 mAh Lithium-Ion battery
Open source, embedded Linux architecture
IrDA Communication Port

AML M71V2 Specs (pdf)

Refine Your Options

Shop By

Scanner Capability

1D (2)

Scanner Type

Laser (1)

Data Collection Type

Wireless (2)

Keypad

55 Keys (2)

AML M71V2 Mobile Computer
Part #: M71V2-0101-00 | SKU: 118600

M71V2, Wireless 802.11b, 32MB RAM/16MB Flash, 1D laser scanner, 55 key alphanumeric, 2600 mAh battery and user manual. Cables and cradle not included. See accessories.
AML M71V2 Mobile Computer
Part #: M71V2-0201-00 | SKU: 118601

M71V2, Wireless 802.11b, 32MB RAM/16MB Flash, long range 1D laser scanner, 55 key alphanumeric, 2600 mAh battery and user manual. Cables and cradle not included. See accessories.
AML M71V2 Mobile Computer
Part #: M71V2-0401-00 | SKU: 118602

M71V2, Wireless 802.11b, 32MB RAM/16MB Flash, advanced long range 1D laser scanner, 55 key alphanumeric, 2600 mAh battery and user manual. Cables and cradle not included. See accessories.
AML M71V2 Mobile Computer
Part #: M71V2-0601-00 | SKU: 118603

M71V2, Wireless 802.11b, 32MB RAM/16MB Flash, 2D imager, 55 key alphanumeric, 2600 mAh battery and user manual. Cables and cradle not included. See accessories.
AML M71V2 Mobile Computer
Part #: M71V2-0501-00 | SKU: 237051

M71V2, WIRELESS Handheld TERMINAL, 802.11b, LORAX SCANNER, ALPHA KEYPAD, TERMINAL AND BATTERY INCLUDED

Recommended Accessories for Model: AML M71V2 Mobile Computer

AML M7100 Spare Parts
Part #: CAS-7101H | SKU: 29888

Holster with Belt For M5900, M7220, M722

$72.25

See Price in Cart (Why?)
AML M5900 Accessory
Part #: ACC-5925 | SKU: 29886

1-Slot Charging and Communications Cradle - Compatible with M71V2, M7220, M7221, M5900

MSRP: $275.00 Price: $246.26

See Price in Cart (Why?)
AML M7170 Accessory
Part #: ACC-7036 | SKU: 16556

Vehicle Mount charging cradle. Includes cigarette-style adapter which can be either plugged in or cut and hardwired to forklift battery. Compatible with M5900, M7220, M7225, M7500, M7221, M71V2. Includes cigarette-style adapter which can be either plugged in or cut and hardwired to forklift battery.
AML M7170 Accessory
Part #: ACC-7038 | SKU: 16557

Vehicle Mount cradle (non-charging)
AML M7100 Spare Parts
Part #: ACC-7HND | SKU: 16549

Pistol Grip Handle
