Altronix ALTV2416 Accessory
Part #: AL62412CX | SKU: 59721

Product Type: Proprietary Power Supply
Brand Name: Altronix
Manufacturer: Altronix Corporation
Product Model: AL62412CX
Product Name: AL62412CX Power Module

Model ALTV2416 provides 24VAC or 28VAC distributed via sixteen (16) fuse protected outputs.

Altronix ALTV2416 Accessory

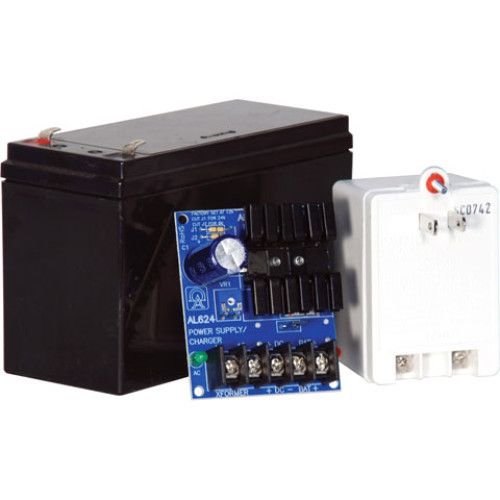

Part Details: AL62412CX Linear Power Supply-Charger (6VDC at 1.2AMP, 12VDC/7AH Battery and 16.5VAC/20VA Plug-In Transformer)

Need a different version of the Altronix ALTV2416 Accessory? View all 446 configurations

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Country of Origin: United States
Package Contents:
- AL62412CX Power Module
- Rechargeable Battery (12VDC 7AH)
- 16.5VAC 20VA Class 2 Rated Plug-in Transformer
- AL62412CX Power Module
- Rechargeable Battery (12VDC 7AH)
- 16.5VAC 20VA Class 2 Rated Plug-in Transformer
Compatibility: Altronix Snap Track ST3
Additional Information:
- Filtered and electronically regulated output
- Built-in charger for sealed lead acid or gel type batteries
- Maximum charge current .3 amp
- AC input and DC output LED indicators
- Thermal and short circuit protection with auto reset
- PTC battery protection
- 12VDC output
- 1.2 amp continuous supply current
