Additional Information
| Manufacturer | No |
|---|---|
| Model Name | ALTV2416 |
| Product Condition | No |
General Information

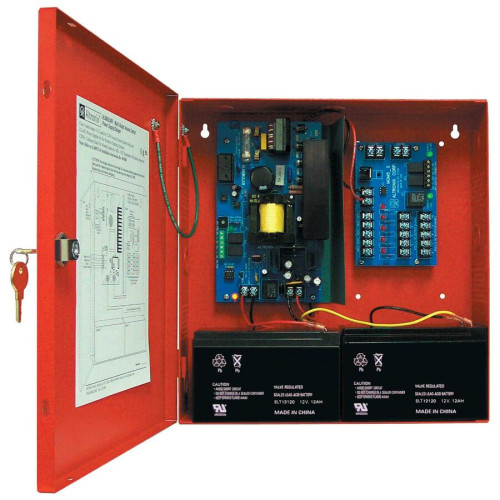

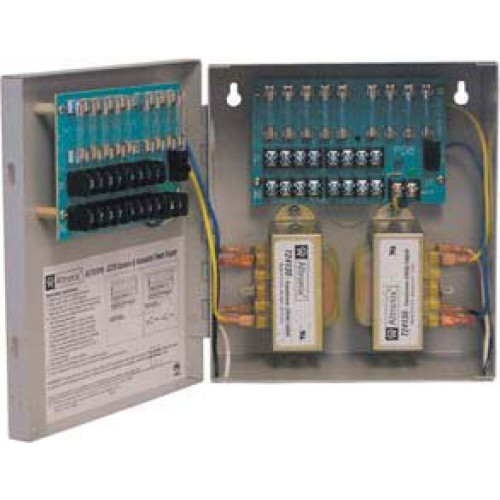

- Product Type: Proprietary Power Supply
- Brand Name: Altronix
- Manufacturer: Altronix Corporation
- Product Name: Multi-Output AC Power Supply
Physical Characteristics
- Height: 13.5"
- Width: 13"
- Depth: 3.3"
Other
- Certifications & Standards:
- UL Listed for Access Control Systems (UL294)
- cUL Listed:
- CSA Standard C22.2 No.205-M1983
- Signal Equipment
- CSFM - California State Fire Marshal
- MEA - NYC Department of Buildings
- Additional Information:
- Filtered and electronically regulated outputs
- Short circuit and thermal overload protection
- Built-in charger for sealed lead acid or gel type battery backup
- Maximum charge current 0.7 amp
- Zero voltage drop upon transfer to battery backup
- AC fail supervision
- Low battery and battery presence supervision
- Accommodates up to two (2) 12VDC/7AH batteries
Power Description
- Input Voltage Type: AC
- Input Voltage: 115 V AC
- Input Voltage Range: 115 V AC
- Input Current: 2.50 A @ 110V
- Output Voltage:
- 12 V DC
- 24 V DC
Warranty
- Limited Warranty: Lifetime
Controls/Indicators
- Status Indicators: AC input and DC output LED indicators
