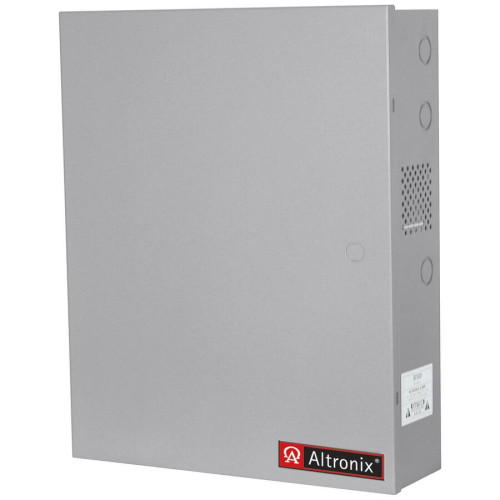

Altronix AL1012ULACM Power Device
Part #: AL1012ULACMCBJ | SKU: 63319

Model AL1012ULACM converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC non power limited fuse protected Fail-Safe and/or Fail-Secure outputs with a total of 10 amp continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs.

Altronix AL1012ULACM Power Device

Part Details: Altronix AL1012ULACMCBJ Proprietary Power Supply - Wall Mount - 110 V AC Input - 8 +12V Rails

Need a different version of the Altronix AL1012ULACM Power Device? View all 4 configurations

Additional Information

Manufacturer	No
Model Name	AL1012ULACM
Product Condition	No

AL1012ULACM Specs (pdf)

General Information

Product Type: Proprietary Power Supply
Brand Name: Altronix
Manufacturer: Altronix Corporation
Product Model: AL1012ULACMCBJ
Product Name: AL1012ULACMCBJ Proprietary Power Supply

Technical Information

Protection Type:
- PTC
- Short Circuit
- Thermal Overload

Physical Characteristics

Height: 18"
Width: 14.5"
Depth: 4.6"
Form Factor: Wall Mount
Weight (Approximate): 13.70 lb

Power Description

Number of +12V Rails: 8
Input Voltage Type: AC
Input Voltage: 110 V AC
Input Current: 1.90 A @ 110V
Output Voltage: 12 V DC @ 10 A

Other

Country of Origin: United States
Compatibility:
- Mag Locks
- Electric Strikes
- Magnetic Door Holders

Warranty

Limited Warranty: Lifetime

Extended Details

Barcode Discount

Altronix AL1012ULACM Power Device Part #: AL1012ULACMCBJ | SKU: 63319
