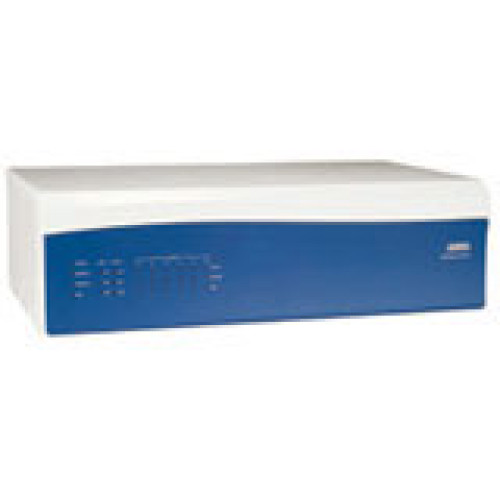

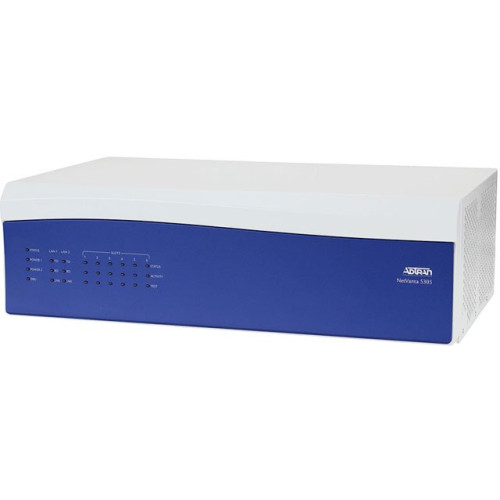

Adtran NetVanta 5305 Data Networking
Part #: 4200995L1 | SKU: 55125

The NetVanta 5305 is an access router designed for cost-effective Internet access, corporate Frame Relay, point-to-point connectivity, and Virtual Private Networking (VPN) for large-bandwidth applications supporting a T3's worth of performance. Residing in a 3U high, 19 inch rackmountable metal enclosure, the NetVanta 5305 is a single platform that offers six interface slots and two 10/100Base-T Ethernet LAN ports for true LAN segmentation or DMZ applications. Initially, the NetVanta 5305 will house a single unchannelized T3 Wide Module, with the Octal T1/E1 Wide Module and a HSSI Wide Module to be released later.

Adtran NetVanta 5305 Data Networking

Part Details: Adtran NetVanta 5305 2-Port Access Router - 2 x 10/100Base-TX LAN

Need a different version of the Adtran NetVanta 5305 Data Networking? View all 5 configurations

Additional Information

Manufacturer	No
Model Name	NetVanta 5305
Product Condition	No

General Information

Product Type: Router
Brand Name: Adtran
Manufacturer: Adtran
Product Model: 5305
Product Name: NetVanta 5305 2-Port Access Router
Product Line: NetVanta

Physical Characteristics

Compatible Rack Unit: 3U
Height: 5.3"
Width: 17.5"
Depth: 10.3"
Form Factor: Rack-mountable
Weight (Approximate): 21 lb

Interfaces/Ports

Number of Network (RJ-45) Ports: 2
Total Number of Ports: 2
Management Port: Yes

Management & Protocols

Security Features:
- PAP and CHAP
- Firewall:
- Stateful Inspection Firewall
- Denial of Service (DoS) Protection
- Access Control Lists
- Application Level Gateways (ALGs)
- Network Address Translation:
- Basic NAT (1:1), NAPT (Many:1), and 1:1 Port Translation
- NAT compatible SIP ALG
- Secure Management:
- Multi-level access control
- RADIUS AAA
- TACACS+
- SSH CLI and SSL GUI
- Port Authentication (802.1x)
- Content Filtering:
- Integration with Websense
- Optional Virtual Private Network (VPN):
- IPSec Tunnel Mode: 2,000 Tunnels
- Encryption: DES, 3DES, and AES
- Diffie Hellman Group Support:
- Group 1: MODP 768
- Group 2: MODP 1024
- Hash Algorithms: MD5-HMAC and SHA1-HMAC
- Authentication Mechanisms:
- XAUTH
- Secure ID
- X.509 Digital certificates
- DSS Signatures
- Preshared keys
- Key Management: IKE (ISAKMP/Oakley)
- Dead Peer Detection
- NAT Traversal V2

Other

Additional Information:
- Built-in DSU/CSU for circuit protection
- Frame Relay:
- Point-to-point
- RFC 1490 Encapsulation (Multiprotocol Over Frame Relay)
- LMI types: LMI, ANSI (Annex D), CCITT (Annex A) and Statics

Power Description

Redundant Power Supply: Yes
Input Voltage:
- 110 V AC
- 220 V AC
Power Source: Power Supply

Network & Communication

Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-TX

Memory

Flash Memory: 32 MB
Standard Memory: 256 MB

I/O Expansions

Number of Total Expansion Slots: 6

Warranty

Limited Warranty: 5 Year
