Adtran NetVanta 5305 Data Networking
Part #: 4200917L1 | SKU: 54308

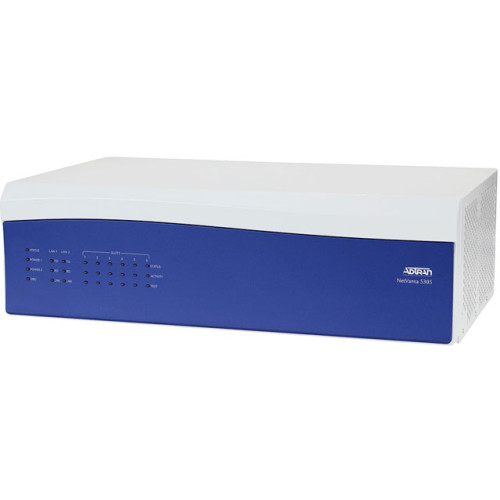

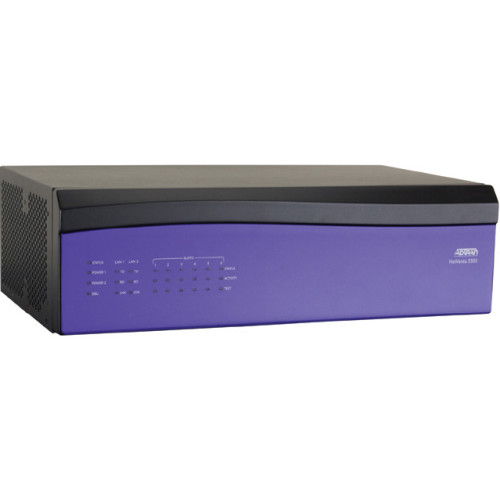

The NetVanta 5305 is an access router designed for cost-effective Internet access, corporate Frame Relay, point-to-point connectivity, and Virtual Private Networking (VPN) for large-bandwidth applications supporting a T3's worth of performance. Residing in a 3U high, 19 inch rackmountable metal enclosure, the NetVanta 5305 is a single platform that offers six interface slots and two 10/100Base-T Ethernet LAN ports for true LAN segmentation or DMZ applications. Initially, the NetVanta 5305 will house a single unchannelized T3 Wide Module, with the Octal T1/E1 Wide Module and a HSSI Wide Module to be released later.

Adtran NetVanta 5305 Data Networking

Part Details: Adtran NetVanta 5305 Router Chassis - 2 Ports - Management Port - 6 Slots - Fast Ethernet - 3U - Rack-mountable

Need a different version of the Adtran NetVanta 5305 Data Networking? View all 5 configurations

Additional Information

Manufacturer	No
Model Name	NetVanta 5305
Product Condition	No

General Information

Product Type: Router Chassis
Product Series: 5000
Brand Name: Adtran
Manufacturer: Adtran
Product Model: 5305
Product Name: NetVanta 5305 Router Chassis
Product Line: NetVanta

Physical Characteristics

Compatible Rack Unit: 3U
Height: 5.1"
Width: 17.6"
Depth: 10.2"
Form Factor: Rack-mountable
Weight (Approximate): 20.94 lb

Interfaces/Ports

Number of Network (RJ-45) Ports: 2
Total Number of Ports: 2
Management Port: Yes

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- WEEE
Package Contents:
- NetVanta 5305 Router Chassis
- HSSI Cable
- NetVanta HSSI Wide Module
- T3SU 300 (2nd Gen)
- NetVanta 5305 Router Chassis
- HSSI Cable
- NetVanta HSSI Wide Module
- T3SU 300 (2nd Gen)
Certifications & Standards:
- FCC Part 68
- Industry Canada CS03
- UL & Canadian UL (CUL), IEC/EN, CSA
- CE Mark

Management & Protocols

Security Features:
- Stateful Inspection Firewall
- Denial of Service (DoS)
- Access Control Lists
- Application Level Gateways (ALGs)
- RADIUS AAA
- TACACS+
- SSL
- SSH
- Port Authentication (802.1x)
- URL filter
- IPSec Tunnel
- DES
- 3DES
- AES
- NAT

Power Description

Redundant Power Supply: Yes
Input Voltage:
- 110 V AC
- 220 V AC
Power Source: Power Supply

Memory

Flash Memory: 32 MB
Standard Memory: 256 MB

Network & Communication

Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-TX

I/O Expansions

Number of Total Expansion Slots: 6
