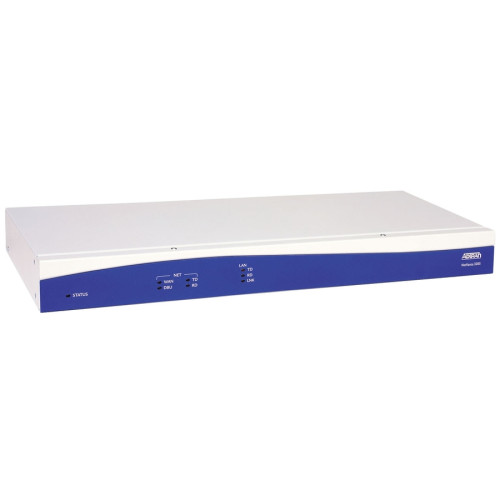

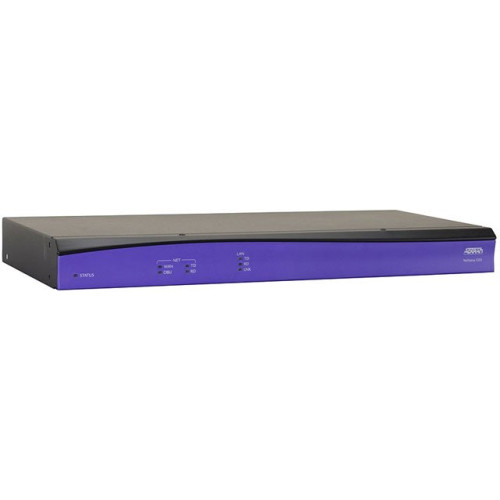

Adtran NetVanta 3205 Data Networking
Part #: 4200873L1 | SKU: 33101

Modular access router supporting line rates from 56K to full T1 for Frame Relay and point-to-point connectivity and access to the public Internet in a rackmount configuration.

Adtran NetVanta 3205 Data Networking

Part Details: NetVanta 3205 with T1-FT1 + DSX-1 NIM (Access Router for frame relay and point-to-point connectivity. Includes modular network interface and 10-100BaseT Ethernet port. )

Need a different version of the Adtran NetVanta 3205 Data Networking? View all 10 configurations

Price: $973.67

Additional Information

Manufacturer	No
Model Name	NetVanta 3205
Product Condition	No

NetVanta 3205 Specs (pdf)

General Information

Product Type: Router
Brand Name: Adtran
Manufacturer: Adtran
Product Model: 3205
Product Name: NetVanta 3205 Access Router
Product Line: NetVanta

Physical Characteristics

Compatible Rack Unit: 1U
Height: 1.3"
Width: 17.3"
Depth: 7.8"
Form Factor: Rack-mountable
Weight (Approximate): 7 lb

Interfaces/Ports

Number of Network (RJ-45) Ports: 1
Total Number of Ports: 2
Management Port: Yes
Number of RJ-48 Ports: 1

Other

Certifications & Standards:
- FCC Part 68
- Industry Canada CS03
- UL & Canadian UL (CUL), IEC/EN, CSA
- CE Mark
Additional Information:
- Modular Network Interface Module (NIM) offering flexibility
- Modular Dial Backup Interface Module (DIM) guaranteeing bandwidth
- Stateful inspection firewall for network security
- Network Address Translation (NAT) for IP Address Concealing
- Command Line Interface (CLI) that mimics industry de facto standard
- Built-in DSU/CSU for circuit protection
- VPN for secure corporate connectivity across the Internet

Network & Communication

Ethernet Technology: Fast Ethernet
Network Technology:
- 10/100Base-TX
- DSX-1
- T1/FT1

Power Description

Input Voltage:
- 110 V AC
- 220 V AC

Memory

Flash Memory: 8 MB
Standard Memory: 16 MB

Warranty

Limited Warranty: 5 Year

I/O Expansions

Number of Total Expansion Slots: 1

Media & Performance

Carrier Supported: T-carrier
