Adtran ATLAS 800 Data Networking Adtran ATLAS 800 Data Networking Adtran ATLAS 800 Data Networking
Adtran Wireless Switch and Access Point

Adtran ATLAS 800 Data Networking
Part #: 4200773L1 | SKU: 39766

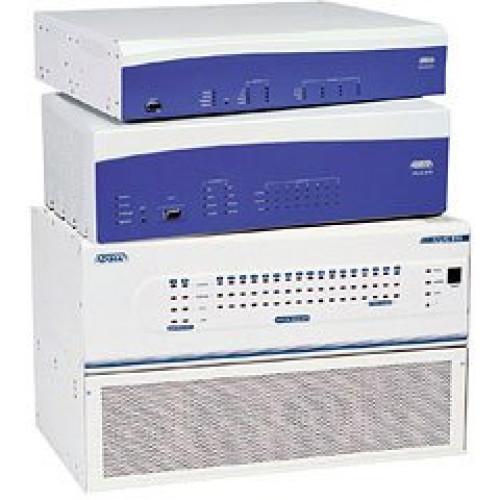

The Adtran ATLAS 800 Series of Integrated Access Devices (IADs) offers one of the most versatile multi-function, modular integrated access platforms available on the market today for converging WAN access, voice, video, data, and Internet communications. This series includes the economical ATLAS 830 and larger 890 Integrated Access Devices (IADs), their chassis modules, and bundled systems designed to improve and reduce overall telecommunications expenses.

Adtran ATLAS 800 Data Networking

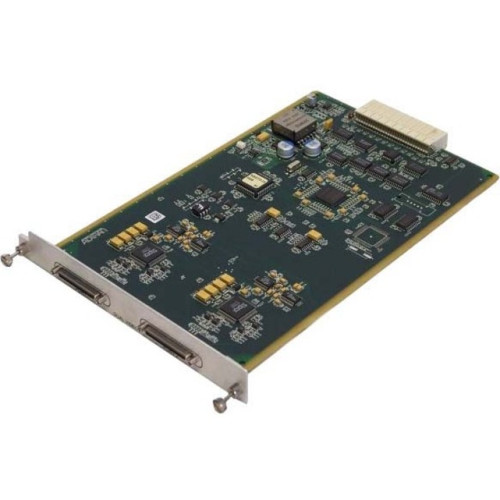

Part Details: Adtran ATLAS 800 Dual V.35 Video Module - 2 x Serial V.35
Need a different version of the Adtran ATLAS 800 Data Networking? View all 12 configurations

Additional Information

Manufacturer No
Model Name ATLAS 800
Product Condition No

General Information

  • Product Type: Expansion Module
  • Brand Name: Adtran
  • Manufacturer: Adtran
  • Product Model: 4200773L1
  • Product Name: ATLAS 800 Dual V.35 Video Module
  • Product Line: ATLAS

Technical Information

  • Application/Usage: Video

Interfaces/Ports

  • Interfaces/Ports: 2 x Serial V.35
  • Interfaces/Ports Details: 2 x Serial V.35

Other

  • Compatibility:
    • ATLAS 890
    • ATLAS 830
    • ATLAS 890
    • ATLAS 830
  • Package Contents:
    • ATLAS 800 Dual V.35 Video Module
    • Two ATLAS Video V.35 cables
    • Video Module Quick Start Guide
    • Video Module User Manual
    • ATLAS 800 Dual V.35 Video Module
    • Two ATLAS Video V.35 cables
    • Video Module Quick Start Guide
    • Video Module User Manual
  • Certifications & Standards:
    • CSA/UL 950/1950 3rd Edition
    • FCC Part 15, Class A
    • Industry Canada CS-03
  • Additional Information:
    • ATLAS supports T3, PRI, BRI, T1, Frame Relay, ISDN Switching, IP Routing and Inverse Multiplexing
    • CTS, DCD, DSR Options: Normal or forced On

Management & Protocols

  • Management:
    • Detailed Diagnostics:
    • Q.931 easy-to-read messages
    • Detailed L2 (Q.921) and L3 (Q.931) decoding
    • Call trace information
    • WAN trunk usage
    • Tests:
    • Local loopback (TDM)- menu or DTE pin activated
    • Local loopback (output drivers)- menu activated
    • Remote loopback- menu activated
    • Self test

Environmental Conditions

  • Humidity: Up to 95% Non-condensing Relative Humidity
  • Temperature:
    • 32°F (0°C) to 113°F (45°C) Operating
    • -4°F (-20°C) to 158°F (70°C) Storage

Media & Performance

  • Data Transfer Rate: 56 Kbps to 1.47 Mbps Serial V.35

Warranty

  • Limited Warranty: 5 Year
