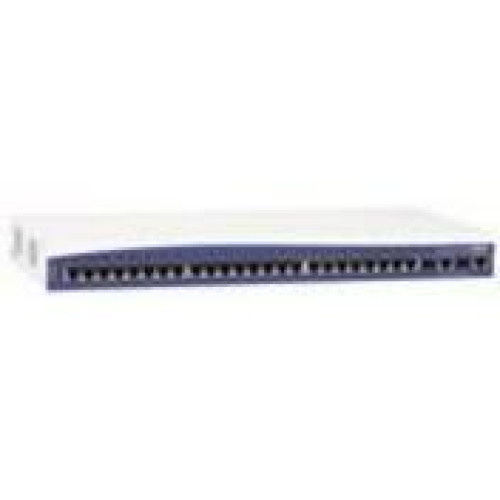

Adtran NetVanta 1224STR Data Networking
Part #: 4200572L1 | SKU: 33093

24+1 Managed Layer 2 Switch with Integral Router

Adtran NetVanta 1224STR Data Networking

Part Details: NetVanta 1224STR PoE with T1/FT1 NIM (24 Port Layer 2 Ethernet Switch with Integral Router and T1 DSU, Supporting 802.3af Power over Ethernet. Combines the Functionality of the NetVanta 1224ST and the NetVanta 3205. Includes 24 - 10/100Base-T Access Ports, Two Combo 1000Base-T/SFP Gigabit Uplink and a Single Network Interface Module)

Need a different version of the Adtran NetVanta 1224STR Data Networking? View all 13 configurations

Additional Information

Manufacturer	No
Model Name	NetVanta 1224STR
Product Condition	No

General Information

Product Type: Ethernet Switch
Product Series: 1000
Brand Name: Adtran
Manufacturer: Adtran
Product Model: 1224STR
Product Name: NetVanta 1224STR PoE Switch
Product Line: NetVanta

Physical Characteristics

Height: 1.7"
Width: 17.2"
Depth: 12.8"
Form Factor: Rack-mountable
Weight (Approximate): 12 lb

Interfaces/Ports

Number of Network (RJ-45) Ports: 24
Total Number of Network Ports: 24
Port/Expansion Slot Details:
- 2 x Gigabit Ethernet Uplink
- 2 x Gigabit Ethernet Expansion Slot
Management Port: Yes
Uplink Port: Yes

Other

Certifications & Standards:
- RFC1490 Encapsulation (Multiprotocol Over Frame Relay)
- LMI Types: LMI, CCITT (Annex A), ANSI (Annex D), Static
- Agency Approvals:
- FCC Part 15 Class A
- CE Mark
- FCC Part 68
- C-tick
- UL 1950/CSA
- IEEE Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.1Q
- IEEE 802.1p
- IEEE 802.3ad
- IEEE 802.1D STP
- IEEE 802.1ab LLP
- IEEE 802.1w RSTP
Additional Information:
- Class of Service (Switching-Layer 2)
- Quality of Service (Routing-Layer 3)
- Frame Relay:
- Point-to-Point
- RFC1490 Encapsulation (Multiprotocol Over Frame Relay)
- LMI Types: LMI, CCITT (Annex A), ANSI (Annex D), Static
- Link Aggregation:
- 802.3ad Link Aggregation
- Support for six trunk groups
- Trunk groups consist of up to eight access ports

Management & Protocols

Manageable: Yes
Management:
- n-Command
- Port Mirroring
- Telnet CLI
- SSL GUI
- SSH CLI
- HTTP GUI
- SYSLOG
- Link Aggregation
- Simple Management Protocol SNMP v2
- DHCP Server, Client, Relay
- VLAN Support:
- Port based VLANs
- 802.1Q tagged trunked VLANs
- Support for up to 255 active VLANs
- Inter-VLAN routing
- GARP VLAN Registration Protocol (GVRP)

I/O Expansions

Number of Total Expansion Slots: 3
Expansion Slot Type:
- NIM
- SFP
Number of SFP Slots: 2
Shared SFP Slot: Yes

Media & Performance

Ethernet Technology: Fast Ethernet
Media Type Supported: Twisted Pair
Network Technology: 10/100Base-TX

Power Description

Input Voltage:
- 110 V AC
- 220 V AC

Memory

Memory Technology: DRAM
Flash Memory: 16 MB
Standard Memory: 32 MB

Network & Communication

Layer Supported: 3

Warranty

Limited Warranty: 5 Year
