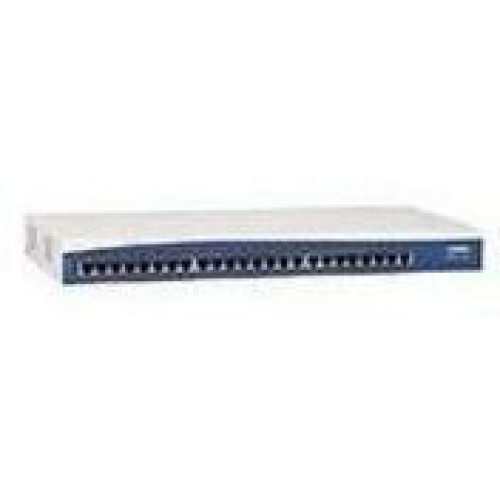

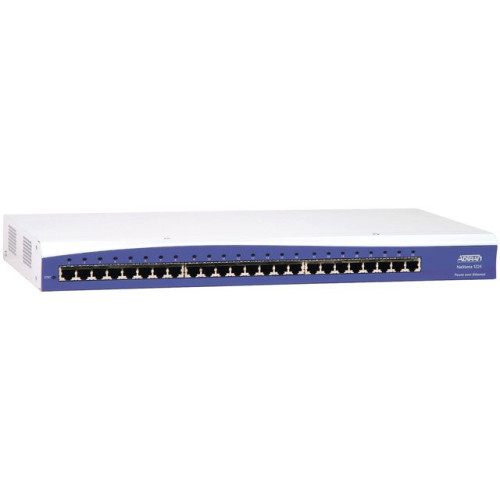

Adtran NetVanta 1224R Data Networking
Part #: 4200510L1 | SKU: 33085

The Adtran NetVanta 1224R is a 24-port managed Layer 2 Fast Ethernet switch with integral IP router with a single WAN interface that accommodates NetVanta NIMs and DIMs for DSU/CSU functionality and optional dial backup. The NetVanta 1224R supports all NetVanta 1000 Series Layer 2 Ethernet switching, access routing, and system level functionality. It also features a 4.8 Gbps non-blocking switching capacity.

Adtran NetVanta 1224R Data Networking

Part Details: NetVanta 1224R (24 Port Layer 2 Ethernet Switch with Integral Router and WAN Interface. Combines the functionality of the NetVanta 1224 and the NetVanta 3205. Includes 24 - 10/100Base-T access ports and a modular network interface. Switching features include 802.1Q VLAN support, 802.1p QoS, 802.1w Rapid Spanning Tree, 802.3ad Link Aggregation, Auto MDI/MDI-X.)

Need a different version of the Adtran NetVanta 1224R Data Networking? View all 5 configurations

Additional Information

Manufacturer	No
Model Name	NetVanta 1224R
Product Condition	No

General Information

Product Type: Ethernet Switch
Product Series: 1000
Brand Name: Adtran
Manufacturer: Adtran
Product Model: 1224R
Product Name: NetVanta 1224R ENET Ethernet Switch
Product Line: NetVanta

Physical Characteristics

Height: 1.7"
Width: 17.2"
Depth: 7.8"
Form Factor: Rack-mountable
Weight (Approximate): 7 lb

Interfaces/Ports

Number of Network (RJ-45) Ports: 24
Total Number of Network Ports: 24
Management Port: Yes

Management & Protocols

Manageable: Yes
Management:
- Telnet CLI
- SSL GUI
- SSH CLI
- SNMP V2
- HTTP GUI
- N-Form
- SYSLOG
- Access control policies
- Dual firmware images stored in unit
- DHCP Server, Client, Relay
- Config script download
- Weighted Round Robin or Priority queuing
- VLAN:
- Port based VLANs
- 802.1Q tagged trunked VLANs
- Support for up to 255 active VLANs
- Inter-VLAN routing

Other

Certifications & Standards:
- IEEE:
- IEEE 802.1D: Spanning Tree
- IEEE 802.1Q: Tagged trunked VLANs
- IEEE 802.1p: priorities
- IEEE 802.3ad: Link Aggregation
- IEEE 802.1w: Rapid Spanning Tree
- Agency Approvals:
- FCC Part 15 Class A
- CE Mark
- FCC Part 68
- C-tick
- UL 1950/CSA
Additional Information:
- 16-MB Memory Shared by all ports
- Non-blocking Ethernet switching

Power Description

Input Voltage:
- 110 V AC
- 220 V AC
Power Source: Power Supply

Memory

Memory Technology: DRAM
Flash Memory: 16 MB
Standard Memory: 32 MB

Media & Performance

Ethernet Technology: Fast Ethernet
Media Type Supported: Twisted Pair
Network Technology: 10/100Base-TX

Warranty

Limited Warranty: 5 Year

Network & Communication

Layer Supported: 3
