Adtran Accessory
Part #: 4200321L1 | SKU: 125368

Products and parts from Adtran.

Adtran Accessory

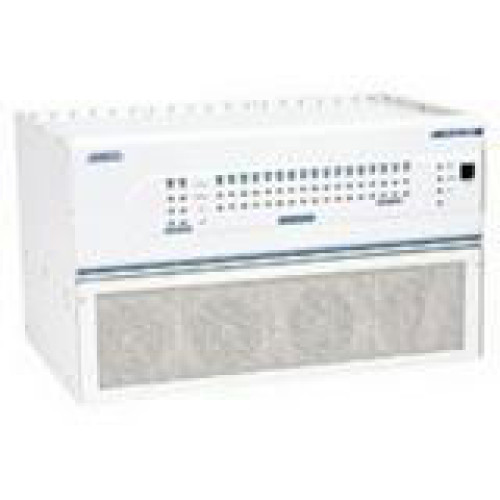

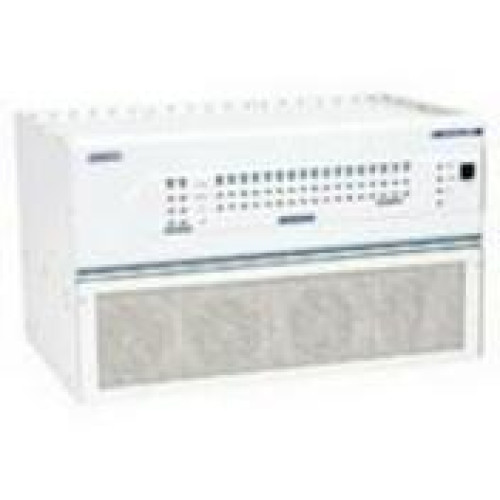

Part Details: Adtran Atlas 890 Gateway - 1 x 10/100Base-TX LAN

Need a different version of the Adtran Accessory? View all 1482 configurations

Additional Information

Manufacturer	No
Model Name	Parts
Product Condition	No

General Information

Product Type: Router
Product Series: 800
Brand Name: Adtran
Manufacturer: Adtran
Product Name: Atlas 890 Gateway
Product Line: Atlas

Physical Characteristics

Height: 10.5"
Width: 19"
Depth: 11.5"
Form Factor: Rack-mountable

Interfaces/Ports

Number of Network (RJ-45) Ports: 1
Total Number of Ports: 1
Management Port: Yes
Number of Serial Ports: 1
Number of RJ-48 Ports: 1

Other

Package Contents:
- ATLAS 890 Enterprise Integrated Access Device
- ADTRAN utilities software (includes TFTP Server, VT100 Client, Telnet)
- One RJ48-DB15 adapter
- One RJ48-DB9 adapter
- User manual on CD
- Mounting Kit
- Rack Mounting Kit
- ATLAS 890 Enterprise Integrated Access Device
- ADTRAN utilities software (includes TFTP Server, VT100 Client, Telnet)
- One RJ48-DB15 adapter
- One RJ48-DB9 adapter
- User manual on CD
- Mounting Kit
- Rack Mounting Kit
Certifications & Standards:
- RFC 1490
- RFC1213
- RFC1406
- IEEE 802.3
- Agency approvals:
- UL 1950
- CUL
- FCC Part 15 (Class A)
- FCC Part 68
Additional Information:
- Modular chassis provides high port density
- Supports T1, T3, ISDN, and Frame Relay applications
- Supports all ATLAS 800 Series modules (hot swappable)
- System Controller includes software for multiplexing, 1/0 and 3/1/0 DACSing, IP routing, ISDN switching, and intelligent voice and data call routing
- System Controller includes Frame Relay software for access, concentration, and switching
- Network emulation capabilities including T1, T3, BRI, PRI, E1, PRA, and Frame Relay
- The ATLAS 890 supports multiple network technologies including T1/FT1/DSX-1, E1/PRA, ISDN, V.35 and 10/100 Ethernet.
- System Controller:
- Provides all processing, control, and management functions for the ATLAS 890
- Fault detection circuitry
- Automatic error detection and switchover to hot standby controller
- Hot swappable
- Flash Downloadable for firmware upgrades
- Built-in Test Pattern Generator
- Link Management:
- ANSI T1.617-D (Annex D)
- ITU-T Q.933-A (Annex A)
- LMI (Group of four)
- Automatic link management protocol discovery congestion control
- FECN/BECN, Discard Eligible (DE)
- Quality Of Service:
- User configurable DLCI priorities
- G.723.1 voice compression
- ISDN Compatibility:
- Lucent 4ESS/5ESS, Nortel DMS-100/250, NI-1 and NI-2

Power Description

Input Voltage: 110 V AC
Power Source: Power Supply

Network & Communication

Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-TX

Warranty

Limited Warranty: 5 Year

I/O Expansions

Number of Total Expansion Slots: 15
