Adtran ATLAS 800 Data Networking Adtran ATLAS 800 Data Networking Adtran ATLAS 800 Data Networking
Adtran Wireless Switch and Access Point

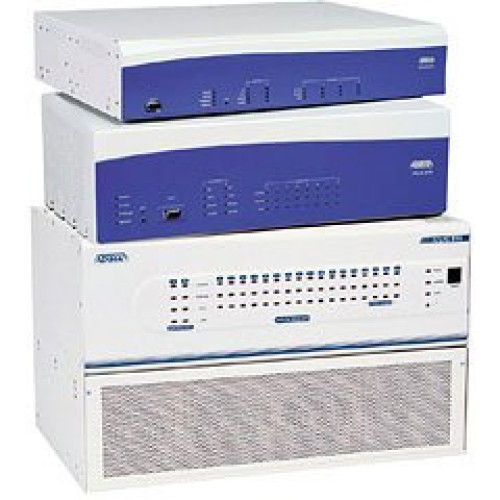

Adtran ATLAS 800 Data Networking
Part #: 4200264L1 | SKU: 39772

The Adtran ATLAS 800 Series of Integrated Access Devices (IADs) offers one of the most versatile multi-function, modular integrated access platforms available on the market today for converging WAN access, voice, video, data, and Internet communications. This series includes the economical ATLAS 830 and larger 890 Integrated Access Devices (IADs), their chassis modules, and bundled systems designed to improve and reduce overall telecommunications expenses.

Adtran ATLAS 800 Data Networking

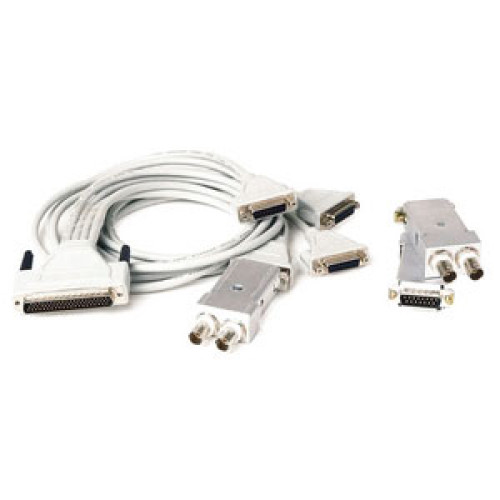

Part Details: ATLAS 800 Series Quad E1 Module with BNC Adapters
Need a different version of the Adtran ATLAS 800 Data Networking? View all 12 configurations

Additional Information

Manufacturer No
Model Name ATLAS 800
Product Condition No

General Information

  • Product Type: Expansion Module
  • Brand Name: Adtran
  • Manufacturer: Adtran
  • Product Model: 4200264L1
  • Product Name: ATLAS 800 Quad E1 Module
  • Product Line: ATLAS

Technical Information

  • Application/Usage: Data Networking

Interfaces/Ports

  • Interfaces/Ports: 4 x E1
  • Interfaces/Ports Details:
    • 1 x DB-62 Connector
    • 4 x E1

Other

  • Package Contents:
    • ATLAS 800 Quad E1 Module
    • DB-15 adapter cable
    • BNC 75 Ohm converter
    • User Manual
    • ATLAS 800 Quad E1 Module
    • DB-15 adapter cable
    • BNC 75 Ohm converter
    • User Manual
  • Certifications & Standards:
    • FCC Part 15 Class A
    • UL 1950
    • IEC 950
    • Canadian UL (CUL)
    • CISPR 22 Class A
  • Additional Information:
    • HDB3 and AMI line coding
    • Built-in CSUs
    • Lightning protection

Management & Protocols

  • Management:
    • Telnet
    • VT100
    • SNMP
    • Local Loopback: Line
    • Test Patterns: QRSS, All 1s, All Os
    • Alarms: LOS, LOF, LOMF, CRC4, AIS, REM, REMF
    • Signal Monitoring: AB signaling bits for all TS0s
  • Protocols:
    • Telnet
    • SNMP

Environmental Conditions

  • Humidity: Up to 95% Non-condensing Relative Humidity
  • Temperature:
    • 32°F (0°C) to 113°F (45°C) Operating
    • -4°F (-20°C) to 158°F (70°C) Storage

Media & Performance

  • Data Transfer Rate: 2.05 Mbps E1
  • Distance Supported: 1.99 Mile

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Power Consumption: 5 W
