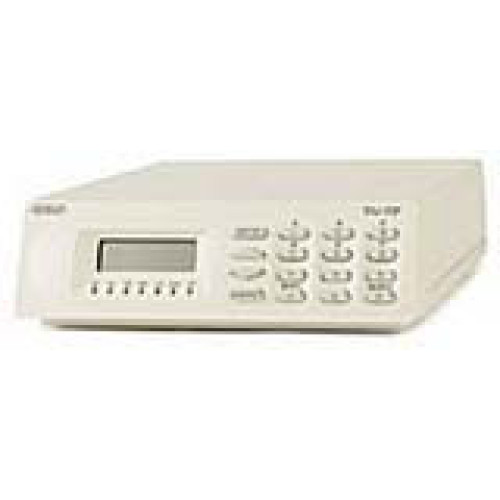

Adtran Networking Data Networking
Part #: 4200169L1 | SKU: 33082

ADTRAN offers a complete line of ISDN Service Units (ISUs) for terminating basic rate service from PBXs and Central Offices. The ISDN Terminal Adapters are ideal for solutions requiring speeds of 128 Kbps. Some models have built-in NT1 functionality. ADTRAN ISDN Inverse Multiplexers provide additional functionality at rates up to 512 Kbps.

Adtran Networking Data Networking

Part Details: TSU ESP with Ethernet (TSU ESP 1200169L1 with 10BaseT Ethernet Card 1204005L1 installed. TSU ESP offers single port T1-FT1 SNMP DSU-CSU, LCD display, VT 100, SNMP and Telnet configuration and status. Integrated SLIP-PPP port and V.35 DTE connection. Modular approach with ESP DBU & ESP Ethernet cards.)

Need a different version of the Adtran Networking Accessory? View all 357 configurations

Additional Information

Manufacturer	No
Model Name	Networking
Product Condition	No

General Information

Product Type: CSU/DSU
Brand Name: Adtran
Manufacturer: Adtran
Product Model: TSU ESP
Product Name: TSU ESP T1/Fractional T1 CSU/DSU

Technical Information

Encoding Method: AMI/B8ZS

Physical Characteristics

Height: 2.4"
Width: 8"
Depth: 10.4"
Weight (Approximate): 4 lb

Interfaces/Ports

Serial V.35 Interface: Yes

Other

Package Contents:
- Two 8-pin to 8-pin modular cables
- Modular to female DB-9 adapter
- User manual
- Two 8-pin to 8-pin modular cables
- Modular to female DB-9 adapter
- User manual
Certifications & Standards:
- FCC part 15
- Class A
- FCC Part 68
- Industry Canada
- CS03
- UL 1950
- CUL
Additional Information:
- Framing: SF/ESF
- ESF Format: - AT&T 54016 - ANSI T1.403
- DS0 Assignment: - Contiguous - Alternating
- T1 Transmit Timing: - Loop timed - Internal - DTE
- Performance Monitor: - Performance Data: BPVs/CRCs, ES, SES, UAS, % AS, % EFSEC, Alarms, Errors
- Reports: NI information stored for past 24 hours in 15 minute increments
- PRMS: ANSI performance report messages (user selectable)
- Built-In Test Patterns: - 511 (active DS0s) with error insert available - All 1s (all DS0s) - All 0s (all DS0s)
- Embedded SNMP and Telnet
- Control port provides SLIP access to SNMP or VT100 terminal configuration
- Automatic or manual dial backup
- Time of Day and Weekend dial backup lockout options
- Support for T-Watch PRO software for optional PCbased configuration
- 10BaseT Ethernet port available with ESP Ethernet Card
- Optional dial backup modules supporting 4-wire switched 56, 2B+D ISDN, and external DCE

I/O Expansions

Number of Total Expansion Slots: 2
Expansion Slot Type:
- ESP Ethernet Module
- Dial Backup Module

Power Description

Maximum Power Consumption: 5 W
Input Voltage: 115 V AC

Warranty

Limited Warranty: 5 Year
