General Information
- Product Type: CSU/DSU
- Brand Name: Adtran
- Manufacturer: Adtran

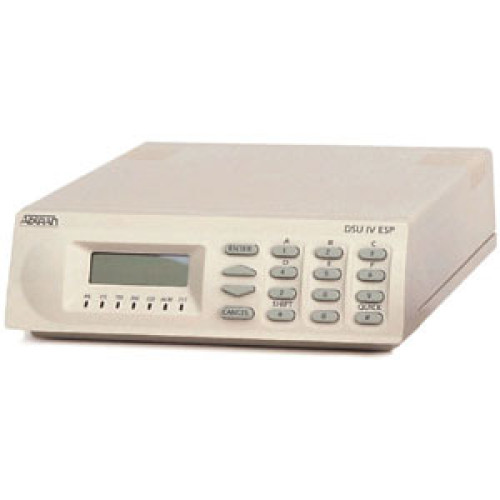

- Product Name: DSU IV ESP DDS CSU/DSU
Physical Characteristics
- Height: 2.4"
- Width: 8"
- Depth: 10.4"
- Weight (Approximate): 4.50 lb
- Color: White
Interfaces/Ports
- Serial V.35 Interface: Yes
Other
- Package Contents:
- Two 8-pin to 8-pin modular cables
- Modular to female DB-25 adapter
- User Manual
- Two 8-pin to 8-pin modular cables
- Modular to female DB-25 adapter
- User Manual
- Certifications & Standards:
- FCC Part 15
- Class A
- Part 68
- Industry Canada CS03
- UL and CUL
- Additional Information:
- Power supply: Integrated<br>
- DTE Rates Provided:<br> - DTE rates match service rates<br> - DTE-to-loop rate matching in both dedicated and switched modes<br>
- Clocking:<br> - Normal DDS or private network tributary (slaved to network receive clock)<br> - Private network master (internal)<br> - Normal DDS tail circuit<br> - Private network master (slaved to external clock)<br>
- Switched Mode Dialing Options:<br> - Stored number<br> - Front panel keypad<br> - DTR dialing of stored numbers<br> - In-band AT commands<br> - V.25 bis in-band dialing<br>
- Line Interface:<br> - RJ-48S<br> - 4-wire<br> - Full duplex<br>
- Receiver Sensitivity: -45 dB at all rates
Power Description
- Maximum Power Consumption: 5 W
- Input Voltage: 115 V AC
Warranty
- Limited Warranty: 5 Year
I/O Expansions
- Number of Total Expansion Slots: 2
