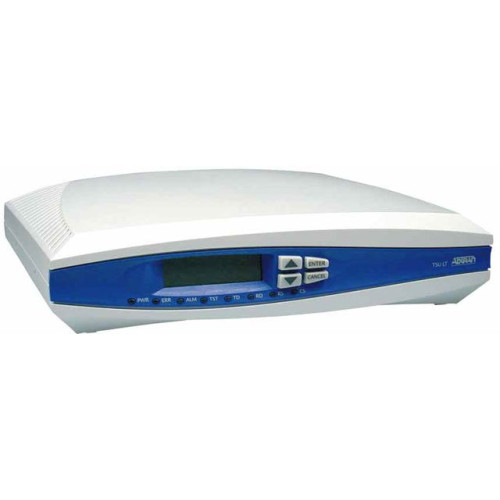

Adtran TSU LT Data Networking
Part #: 1203060L1 | SKU: 33071

ADTRAN's full line of cost-effective single-port TSUs provide an interface between T1 or Fractional T1 service and the end user's Data Terminal Equipment (DTE) for applications such as LAN to LAN connectivity, Frame Relay circuit termination and dedicated videoconferencing.

Adtran TSU LT Data Networking

Part Details: TSU LT (3rd Gen)

Need a different version of the Adtran TSU LT Data Networking? View all 1 configurations

Additional Information

Manufacturer	No
Model Name	TSU LT
Product Condition	No

General Information

Product Type: CSU/DSU
Brand Name: Adtran
Manufacturer: Adtran
Product Name: TSU LT T1/Fractional T1 CSU/DSU

Technical Information

Encoding Method: AMI/B8ZS

Physical Characteristics

Height: 1.5"
Width: 9"
Depth: 6.3"
Form Factor:
- Rack-mountable
- Wall Mountable
Weight (Approximate): 2 lb

Interfaces/Ports

Serial Port: Yes
Serial V.35 Interface: Yes

Other

Certifications & Standards:
- FCC part 15
- Class A
- FCC Part 68
- Industry Canada CS03
- UL
- CUL
Additional Information:
- Single V.35 DTE interface for applications such as LAN-to-LAN bridging, Frame Relay circuit termination, and dedicated videoconferencing
- User-programmable with front panel LCD and keypad
- Supports VT100 terminal configuration and remote configuration using control port
- Easy to use front panel keypad or EIA-232 control port for unit configuration and monitoring
- Remote TSU LT configuration via FDL or 8k in-band
- Local and remote loopback capability
- Extensive built in test capabilities
- Network T1 Test Access jacks
- Support for T-Watch PRO software for optional PC based configuration
- IEC standard power connection
- DTE Transmit Clock: Automatic
- Reports: NI information stored for last 24 hours in 15 minute increments
- PRMS: ANSI Performance Report Messages (User selectable)
- Framing: - SF/ESF - Auto Detection
- ESF Format: - AT&T 54016 - ANSI T1.403
- DSO Assignment: - Contiguous - Alternating
- T1 Transmit Timing: - Network Loop Timed - Internal - DTE
- Performance Monitor Performance Data: - BPVs/CRCs - ES - SES - UAS - % AS - % EFSEC - Alarms - Errors
- Built-In Test Patterns: - 511 (active DS0s) with error insert available - 1:8 (all DS0s) - All 1's (all DS0s) - All 0's (all DS0s)

Power Description

Maximum Power Consumption: 5 W
Input Voltage: 115 V AC

Warranty

Limited Warranty: 5 Year
