Adtran NetVanta 4000 Data Networking Adtran NetVanta 4000 Data Networking
Adtran Wireless Switch and Access Point

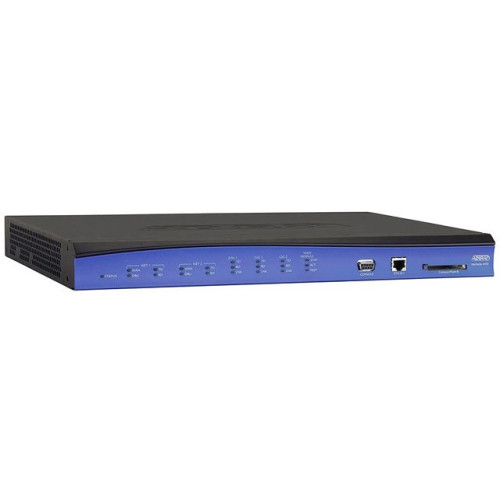

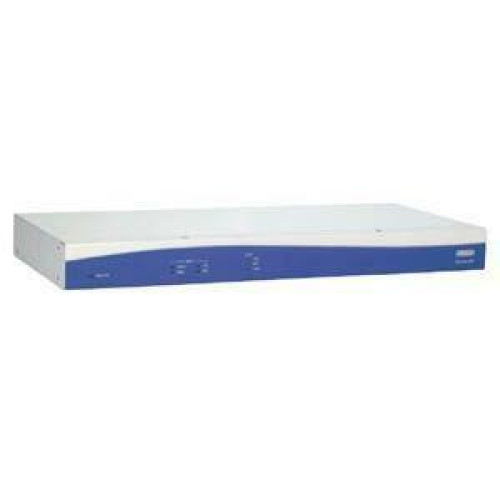

Adtran NetVanta 4000 Data Networking
Part #: 1200950L1 | SKU: 69183

The NetVanta 4000 Series is designed for cost-effective Internet access, MPLS, corporate Frame Relay, point-to-point connectivity, ADSL, VPN and Carrier Ethernet for high-bandwidth applications. The NetVanta 4000 Series are modular platforms that offer Ethernet LAN ports (Fast or Gig), one wide-slot for the Octal T1 Wide NIM Module, and two NIM slots that will house a variety of the NetVanta Network Interface Modules (NIMs) and Dial Backup Modules (DIMs).

Adtran NetVanta 4000 Data Networking

Part Details: Adtran NetVanta 4305 Access Router - 2 x NIM/DIM - 2 x 10/100Base-TX LAN
Need a different version of the Adtran NetVanta 4000 Data Networking? View all 11 configurations

Additional Information

Manufacturer No
Model Name NetVanta 4000
Product Condition No

General Information

  • Product Type: Router
  • Product Series: 4000
  • Brand Name: Adtran
  • Manufacturer: Adtran
  • Product Model: 4305
  • Product Name: NetVanta 4305 Access Router
  • Product Line: NetVanta

Physical Characteristics

  • Compatible Rack Unit: 1U
  • Height: 1.8"
  • Width: 17.3"
  • Depth: 11"
  • Form Factor: Rack-mountable
  • Weight (Approximate): 7.50 lb

Interfaces/Ports

  • Number of Network (RJ-45) Ports: 2
  • Total Number of Ports: 2
  • Management Port: Yes

Other

  • Certifications & Standards:
    • FCC Part 68
    • Industry Canada CS03
    • UL & Canadian UL (CUL), IEC/EN, CSA
    • CE Mark
    • IEEE:
    • IEEE 802.1x
    • IEEE 802.1Q
    • IEEE 802.1D
    • IEEE 802.3
    • IEEE 802.3u
    • Frame Relay:
    • RFC 1490 Encapsulation (Multiprotocol Over Frame Relay)
    • LMI types: LMI, ANSI (Annex D), CCITT (Annex A) and Static
  • Additional Information:
    • Point-to-point Frame Relay
    • Built-in DSU/CSU for circuit protection
    • Multihoming provides redundant or backup WAN links to multiple ISPs
    • Supports ATM (ADSL), Frame Relay, Multilink Frame Relay, Multilink PPP, PPP Dial Backup
    • Quality of Service (QoS):
    • Class-based Weighted Fair Queuing, Low Latency, and Weighted Fair Queuing
    • DiffServ marking and packet recognition
    • Frame Relay Fragmentation

Management & Protocols

  • Security Features:
    • Multi-level access control
    • RADIUS AAA
    • Port Authentication (IEEE 802.1x)
    • PAP and CHAP
    • Firewall:
    • Stateful Inspection Firewall
    • Denial of Service (DoS) Protection
    • Access Control Lists
    • Application Level Gateways (ALGs)
    • Network Address Translation:
    • Basic NAT (1:1), NAPT (Many:1), and 1:1 Port Translation
    • NAT compatible SIP ALG

I/O Expansions

  • Number of Total Expansion Slots: 3
  • Expansion Slot Type:
    • WAN Module
    • NIM/DIM

Network & Communication

  • Ethernet Technology: Fast Ethernet
  • Network Technology: 10/100Base-TX

Memory

  • Flash Memory: 32 MB
  • Standard Memory: 256 MB

Warranty

  • Limited Warranty: 5 Year
Extended Details

Recommended Accessories for Model: Adtran NetVanta 4000 Data Networking

  • Adtran NetVanta 4000 Data Networking
    Part #: 420036800 | SKU: 71292

    NetVanta Accessories, Enhanced Feature Pack Upgrade (for the NetVanta 4305)
    Price: $995.00

  • Adtran NetVanta T1/FT1 Data Networking
    Part #: 1202862L1 | SKU: 33066

    NetVanta T1/FT1 Network Interface Module (Provides a network interface for a fractional or full T1 for the NetVanta 1000, 3000, and 4000 Series of access routers)
    MSRP: $300.00 Price: $262.35

  • Adtran NetVanta T1/FT1+DSX-1 Data Networking
    Part #: 1202863L1 | SKU: 33067

    NetVanta T1/FT1+DSX-1 Network Interface Module (Provides a fractional or full T1 network interface for the NetVanta 1000, 3000, and 4000 Series, as well as, a DSX-1 interface for connecting voice equipment like a PBX)
    MSRP: $450.00 Price: $393.53

  • Adtran NetVanta 4000 Accessory
    Part #: 4200368L2 | SKU: 39974

    Enhanced Feature Pack Upgrade (Hardware and software upgrade to support IPSec based VPN in the NetVanta 4305 only. Includes support for DES/3DES/AES encryption and includes MD5/SHA1 authentication. Compatible with the NetVanta 2000 series. Support for up to 1000 simultaneous IPSec tunnels)

  • Adtran Networking Data Networking
    Part #: 1200242L1 | SKU: 36253

    Network Interface, 56k/64k DDS network interface for NetVanta 1000, 3000, and 4000 Series of access routers
