Adtran Products
Part #: 1200375L2 | SKU: 125356

Products and parts from Adtran.

Adtran Products

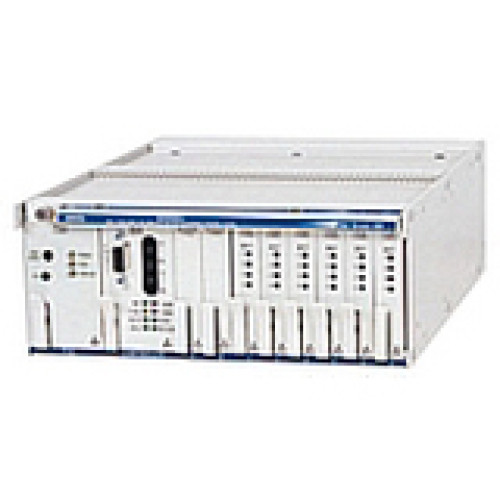

Part Details: Adtran Total Access 850 Gateway - 16 x Expansion Slot, 1 x System Control Unit - 1 x T1/FT1 WAN, 1 x Serial, 1 x DSX-1 WAN, 10Base-T LAN

Need a different version of the Adtran Accessory? View all 1482 configurations

Additional Information

Manufacturer	No
Model Name	Parts
Product Condition	No

General Information

Product Type: Router
Product Series: 850
Brand Name: Adtran
Manufacturer: Adtran
Product Name: Total Access 850 Gateway
Product Line: Total Access

Physical Characteristics

Compatible Rack Unit: 2U
Height: 3.5"
Width: 8.5"
Depth: 11"
Form Factor: Rack-mountable
Weight (Approximate): 8 lb

Interfaces/Ports

Number of Network (RJ-45) Ports: 1
Total Number of Ports: 1
Management Port: Yes
Number of Serial Ports: 1
Number of RJ-48 Ports: 1

Other

Certifications & Standards:
- IEEE 802.3
- IEEE 802.1D MAC bridging
- RFC 1490 Frame Relay encapsulation
- ANSI T1.403
- Agency Approvals:
- UL 1950
- CUL
- FCC Part 15 (class A)
- FCC Part 68
Additional Information:
- With a BCU, the Total Access 850 can be configured as a cost-effective TDM channel bank. The BCU activates a T1 network interface and a fractional T1 (DSX-1) interface located on the rear of the chassis.
- The RCU is another system control option that offers TDM functionality and a migration path to packet technologies including ATM. The RCU also offers an integral IP router and activates a Nx56/64 V.35 port on the rear of the chassis for connecting an additional external data device.
- Common cards required for operation are a power supply unit (PSU) and a system control unit.
- Hot-swappable modules may be replaced without disrupting other units.
- The four-circuit-per module design ensures that a maximum of only four analog circuits are affected when replacing a module.
- A compact, metal chassis suitable for the customer premises or the central office provides added safety and reliability.
- Analog FXS and FXO voice expansion (four per board)
- Supports TR-08 signaling
- TDM to ATM migration
- Modular network interface for future xDSL compatibility
- Framing: D4 (SF)/ESF, TR-08, AT&T 54016 or ANSI T1.403
- Line Code: AMI/B8ZS
- Input Signal: 0 to -36 dB
- DS0 Assignment: User selectable
- T1 Transmit Timing: Loop and local TR-08 Support: Single Party Ringing (SPR) and Universal Voice Grade (UVG) analog ports supported with FXS modules. CLASS® services.
- Frame Relay encapsulation
- Clock Options: Normal/Inverted and Internal
- DSX-1 Framing: D4(SF)/ESF
- DSX-1 Line Code: AMI/B8ZS
- DSX-1 Line Length: 0 to 655 ft in 133 ft steps

Network & Communication

Ethernet Technology: Ethernet
Network Technology:
- 10Base-T
- DSX-1
- T1/FT1

I/O Expansions

Number of Total Expansion Slots: 17
Expansion Slot Type: System Control Unit

Warranty

Limited Warranty: 10 Year

Media & Performance

Carrier Supported: T-carrier

Extended Details
