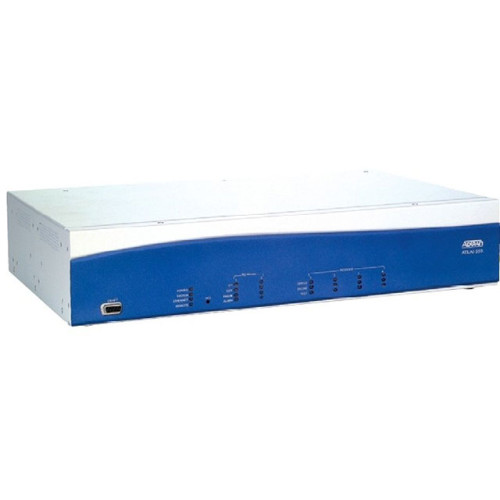

Adtran ATLAS 550 Data Networking
Part #: 1200310L1 | SKU: 39754

The Adtran ATLAS 550 of Integrated Access Devices (IADs) offers one of the most versatile integrated access platforms available on the market today for converging voice, video, data, and Internet communications. This series includes the ATLAS 550 Integrated Access Device (IAD) chassis, modules, and bundled systems designed to improve and lower network costs for enterprise businesses and network service providers.

Adtran ATLAS 550 Data Networking

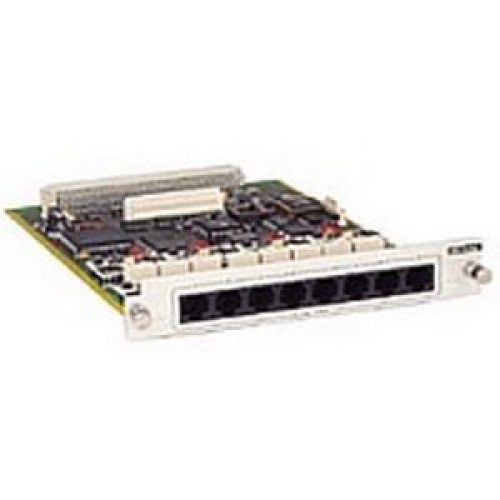

Part Details: Adtran Atlas 1200310L1 Expansion Module - 24 x FXO

Need a different version of the Adtran ATLAS 550 Data Networking? View all 14 configurations

Additional Information

Manufacturer	No
Model Name	ATLAS 550
Product Condition	No

General Information

Product Type: Expansion Module
Brand Name: Adtran
Manufacturer: Adtran
Product Model: 1200310L1
Product Name: Atlas 1200310L1 Expansion Module
Product Line: ATLAS

Technical Information

Application/Usage: Data Networking

Physical Characteristics

Dimensions: 1.1" Height x 6.3" Width x 8.9" Depth
Weight (Approximate): 1.50 lb

Interfaces/Ports

Interfaces/Ports: 24 x FXO
Interfaces/Ports Details:
- 24 x Channel FXO
- 8 x RJ-45 Connector

Other

Package Contents:
- Analog FXO Module
- Quick Start Guide
- Analog FXO Module
- Quick Start Guide
Certifications & Standards:
- Agency Approvals
- FCC Part 15 (A)
- CISPR 22 (A)
- Industry Canada CS03
- UL 1950
- CUL IEC 950
- FCC Part 68
System Requirements: Occupies one option module slot
Additional Information:
- Operating Modes:
- FXO (Loop and Ground Start)
- DPT
- 2-Wire Impedance:
- 600 OHMS +2.16 uF
- TLP Levels:
- -6dB to +6dB -- Rx Gain (in 3 dB steps)
- -6dB to +6dB -- Tx Gain (in 3 dB steps)
- Ring Detection:
- >20 VAC @ 15-65 Hz
- 0.3 REN per port
- Other Features:
- CLASS Services Supported
- Line Side Answer Supervision
- Distinctive Alerting
- Far End Disconnect

Environmental Conditions

Humidity: Up to 95% Non-condensing Relative Humidity
Temperature:
- 32°F (0°C) to 113°F (45°C) Operating
- -4°F (-20°C) to 158°F (70°C) Storage

Power Description

Power Consumption: 7 W

Media & Performance

Distance Supported: 2400 ft

Extended Details
