Adtran ATLAS 800 Data Networking Adtran ATLAS 800 Data Networking Adtran ATLAS 800 Data Networking
Adtran Wireless Switch and Access Point

Adtran ATLAS 800 Data Networking
Part #: 1200262L1 | SKU: 36823

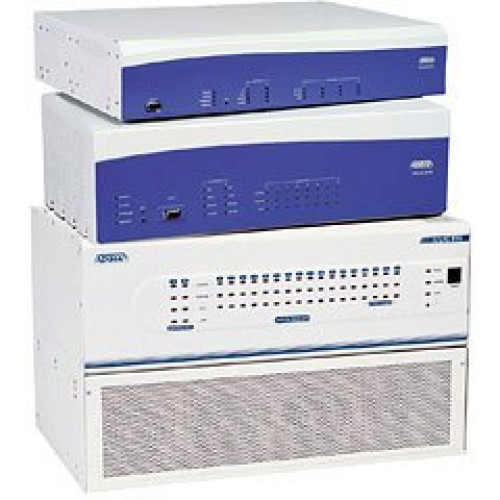

The Adtran ATLAS 800 Series of Integrated Access Devices (IADs) offers one of the most versatile multi-function, modular integrated access platforms available on the market today for converging WAN access, voice, video, data, and Internet communications. This series includes the economical ATLAS 830 and larger 890 Integrated Access Devices (IADs), their chassis modules, and bundled systems designed to improve and reduce overall telecommunications expenses.

Adtran ATLAS 800 Data Networking

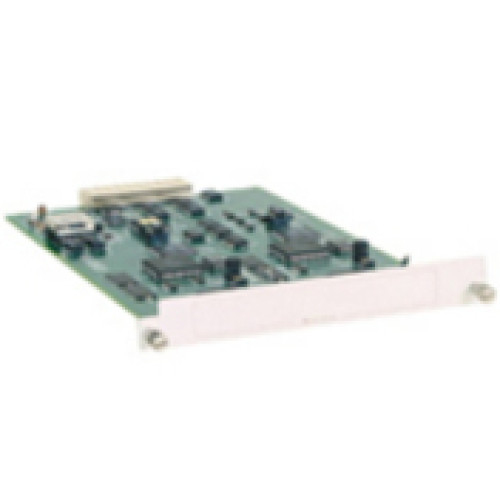

Part Details: Adtran ATLAS 800 Nx56/64 Bonding Module
Need a different version of the Adtran ATLAS 800 Data Networking? View all 12 configurations

Additional Information

Manufacturer No
Model Name ATLAS 800
Product Condition No

General Information

  • Product Type: Network Module
  • Brand Name: Adtran
  • Manufacturer: Adtran
  • Product Model: 1200262L1
  • Product Name: ATLAS 800 Nx56/64 Bonding Module
  • Product Line: ATLAS

Technical Information

  • Application/Usage: Data Networking

Physical Characteristics

  • Dimensions: 0.8" Height x 6" Width x 9.7" Depth
  • Weight (Approximate): 1.10 lb
  • Form Factor: Hot-swappable

Other

  • Compatibility:
    • ATLAS 800 series chassis
    • ADTRAN's Express 5000 series with ISDN dial backup options
    • IQ family of frame monitoring CSU/DSUs
    • ISU 128, ISU 512
    • TSU family of T1 access devices with ISDN dial backup options
    • ATLAS 800 series chassis
    • ADTRAN's Express 5000 series with ISDN dial backup options
    • IQ family of frame monitoring CSU/DSUs
    • ISU 128, ISU 512
    • TSU family of T1 access devices with ISDN dial backup options
  • Package Contents:
    • ATLAS 800 Nx56/64 Bonding Module
    • User manual
    • ATLAS 800 Nx56/64 Bonding Module
    • User manual
  • Certifications & Standards:
    • FCC Part 15 Class A
    • UL
    • Canadian UL (CUL)
  • Additional Information:
    • Flash upgradeable
    • Supports DTR dialing, event driven, and terminal command BONDING
    • Can be used to restore Frame Relay or dedicated FT1/T1 links
    • Capacity:
    • Up to 32 128 kbps sessions
    • Total bandwidth of 4.096 Mbps available

Environmental Conditions

  • Humidity: Up to 95% Non-condensing Relative Humidity
  • Temperature:
    • 32°F (0°C) to 113°F (45°C) Operating
    • -4°F (-20°C) to 158°F (70°C) Storage

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Power Consumption: 6.60 W
Extended Details
