Adtran ATLAS 800 Data Networking Adtran ATLAS 800 Data Networking Adtran ATLAS 800 Data Networking
Adtran Wireless Switch and Access Point

Adtran ATLAS 800 Data Networking
Part #: 1200185L3 | SKU: 33024

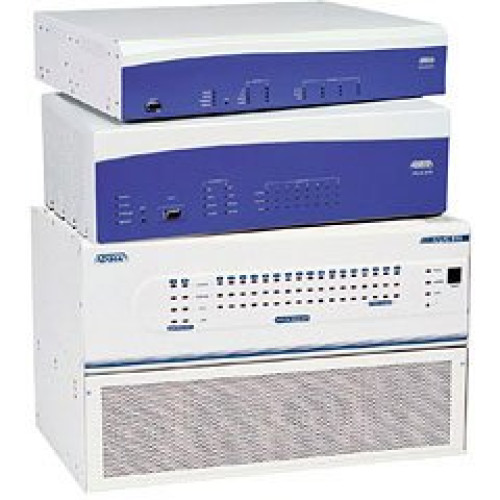

The Adtran ATLAS 800 Series of Integrated Access Devices (IADs) offers one of the most versatile multi-function, modular integrated access platforms available on the market today for converging WAN access, voice, video, data, and Internet communications. This series includes the economical ATLAS 830 and larger 890 Integrated Access Devices (IADs), their chassis modules, and bundled systems designed to improve and reduce overall telecommunications expenses.

Adtran ATLAS 800 Data Networking

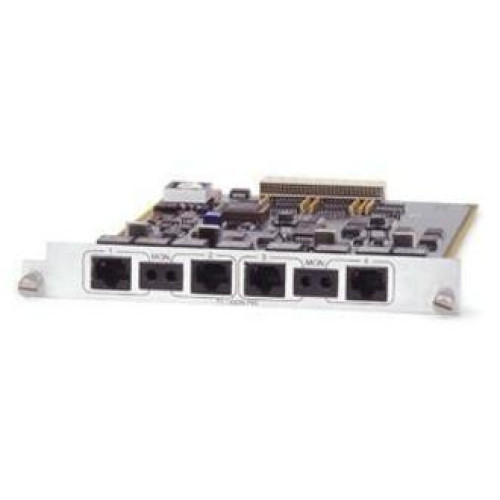

Part Details: ATLAS 800 Series Quad T1-PRI Module
Need a different version of the Adtran ATLAS 800 Data Networking? View all 12 configurations

Additional Information

Manufacturer No
Model Name ATLAS 800
Product Condition No

General Information

  • Product Type: T1/PRI Module
  • Brand Name: Adtran
  • Manufacturer: Adtran
  • Product Model: 1200185L3
  • Product Name: Atlas 800 Series T1/PRI Module
  • Product Line: ATLAS

Technical Information

  • Application/Usage: Wide Area Network

Interfaces/Ports

  • Interfaces/Ports: 4 x Channelized T1/ISDN PRI LAN
  • Interfaces/Ports Details: 4 x RJ-48C T1/PRI

Other

  • Compatibility:
    • ATLAS 800 series chassis<br><br> Switch Compatibility:
    • PRI Mode: Lucent 4ESS/5ESS, Nortel DMS-100, National ISDN
    • ATLAS 800 series chassis<br><br> Switch Compatibility:
    • PRI Mode: Lucent 4ESS/5ESS, Nortel DMS-100, National ISDN
  • Package Contents:
    • Four RJ-48 to RJ-48 cables (15 feet)
    • Two RJ-48 to RJ-48 crossover cables (15 feet)
    • Two RJ-48 to DB-15 adapters
    • User manual
    • Four RJ-48 to RJ-48 cables (15 feet)
    • Two RJ-48 to RJ-48 crossover cables (15 feet)
    • Two RJ-48 to DB-15 adapters
    • User manual
  • Certifications & Standards:
    • FCC Part 15, Class A 1950
    • UL 1950
    • Canadian UL (CUL)
  • Additional Information:
    • Four T1/PRI interfaces
    • Built-in CSUs
    • Configurable for DS-1, PRI, or DSX-1 operation
    • Maximum distance 6,000 ft
    • AT&amp;T 54016, 62411 and ANSI T1.403 compliant
    • D4 and ESF framing formats
    • AMI and B8ZS line coding
    • D-Channel to robbed bit signaling conversion
    • ESF performance monitoring
    • Local and remote loopback support
    • Generates and detects QRSS test pattern
    • Compliant with Lucent 4ESS/5ESS, Nortel DMS100 and National ISDN
    • Lightning protection
    • Occupies a single slot in the ATLAS 800 series chassis
    • Hot swappable
    • Framing: D4, ESF
    • Line Coding: AMI, B8ZS
    • LBO: 0, 7.5, 15, 22.5 dB; 266, 399, 533, 655 feet
    • System Timing: Network, Internal, External
    • T1 Signaling Methods:- E&amp;M Immediate, E&amp;M Wink, Ground Start, Loop Start, Feature Group D
    • Conversion:- Robbed Bit Signaling to ISDN D-Channel, AMI to B8ZS, D4 to ESF
    • Switch Compatibility: PRI Mode: Lucent 4ESS/5ESS, Nortel DMS-100, National ISDN
    • Switch Emulation: PRI Mode: Lucent 4ESS/5ESS, Nortel DMS-100, National ISDN
    • Test Patterns: QRSS, All 1s, All 0s
    • Alarms: Loss of Signal, Red, Yellow, Blue, D-Channel
    • Performance Monitoring: ES, BES, SES, SEFS, LOFC, CSS, UAS, LCV, PCV, LES
    • Signal Monitoring: AB signaling bits for all DS0s, individual monitor jacks for each port<br><br> Diagnostics:
    • Local Loopback - Line and Payload
    • Remote Loopback - Line and Payload

Management & Protocols

  • Management: Configuration of the Quad T1/PRI module can be accomplished through a variety of mechanisms, including Telnet or VT100 emulation. SNMP management is supported for alarm and event reporting.
  • Protocols:
    • ISDN
    • HDLC
    • SNMP

Media & Performance

  • Data Transfer Rate: 1.54 Mbps T1
  • Connectivity Media: ISDN PRI T1
  • Distance Supported:
    • 1.14 Mile DS-1
    • 655 ft DSX-1

Environmental Conditions

  • Humidity: Up to 95% Non-condensing Relative Humidity
  • Temperature:
    • 32°F (0°C) to 113°F (45°C) Operating
    • -4°F (-20°C) to 158°F (70°C) Storage

Warranty

  • Limited Warranty: 5 Year
  • Parts Warranty/Labor: 5 Year

Power Description

  • Power Consumption: 6.50 W
Extended Details
