Adtran Networking Accessory
Part #: 1200184L1 | SKU: 92600

ADTRAN offers a complete line of ISDN Service Units (ISUs) for terminating basic rate service from PBXs and Central Offices. The ISDN Terminal Adapters are ideal for solutions requiring speeds of 128 Kbps. Some models have built-in NT1 functionality. ADTRAN ISDN Inverse Multiplexers provide additional functionality at rates up to 512 Kbps.

Adtran Networking Accessory

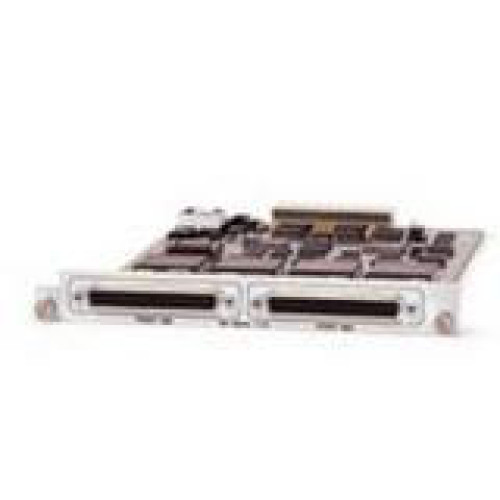

Part Details: Adtran Atlas 800 Series Quad Nx56/64 V.35 Expansion Module - 4 x Synchronous Serial

Need a different version of the Adtran Networking Accessory? View all 357 configurations

Additional Information

Manufacturer	No
Model Name	Networking
Product Condition	No

General Information

Product Type: Expansion Module
Brand Name: Adtran
Manufacturer: Adtran
Product Model: 1200184L1
Product Name: Atlas 800 Series Quad Nx56/64 V.35 Expansion Module
Product Line: ATLAS

Technical Information

Application/Usage: Data Networking

Interfaces/Ports

Interfaces/Ports: 4 x Synchronous Serial WAN

Other

Compatibility:
- ATLAS Chassis
- ATLAS Chassis
Package Contents:
- Two DB-37 to V.35 Adapter Cables, each servicing two V.35 Winchester Connectors
- User Manual
- Two DB-37 to V.35 Adapter Cables, each servicing two V.35 Winchester Connectors
- User Manual
Certifications & Standards:
- FCC part 15, Class A
- UL
- Canadian UL (CUL)
System Requirements: One Slot Required
Additional Information:
- 50% Duty Cycle Output Clock at All Rates
- V.54 Loopback
- Generates and Detects 511 Test Pattern
- User-Mapping of DS0s to DTE Port Logical Channels
- DTR Dialing Support
- Hot Swappable
- Supports Frame Relay applications when used in the ATLAS 800PLUS/810PLUS (with Frame Relay Software), ATLAS 830, and ATLAS 890 chassis

Management & Protocols

Management: Supports an 8000 bps In-band management channel to communicate with remote ADTRAN TSU devices
Protocols:
- Telnet
- SNMP

Media & Performance

Data Transfer Rate:
- 2.04 Mbps Serial V.35 Synchronous
- 64 Kbps Serial V.35 Per Channel
- 56 Kbps Serial V.35 Per Channel

Environmental Conditions

Humidity: Up to 95% Non-condensing Relative Humidity
Temperature:
- 32°F (0°C) to 113°F (45°C) Operating
- -4°F (-20°C) to 158°F (70°C) Storage

Warranty

Limited Warranty: 5 Year

Power Description

Power Consumption: 8 W

Extended Details
