Adtran Networking Accessory
Part #: 1200078L1 | SKU: 92597

ADTRAN offers a complete line of ISDN Service Units (ISUs) for terminating basic rate service from PBXs and Central Offices. The ISDN Terminal Adapters are ideal for solutions requiring speeds of 128 Kbps. Some models have built-in NT1 functionality. ADTRAN ISDN Inverse Multiplexers provide additional functionality at rates up to 512 Kbps.

Adtran Networking Accessory

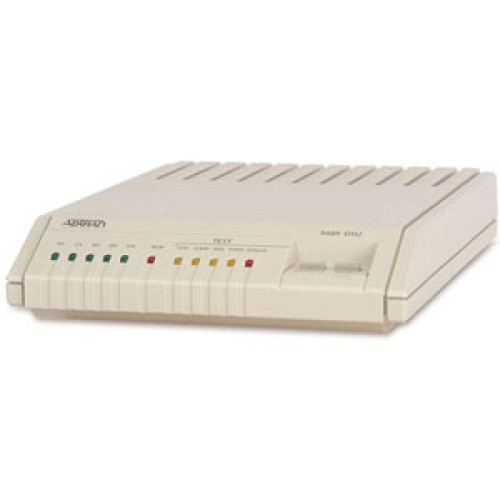

Part Details: Adtran DSU 5600 DDS CSU/DSU - RJ-48S, EIA-232 - 64Kbps

Need a different version of the Adtran Networking Accessory? View all 357 configurations

Additional Information

Manufacturer	No
Model Name	Networking
Product Condition	No

General Information

Product Type: DSU
Brand Name: Adtran
Manufacturer: Adtran
Product Name: DSU 5600 DDS CSU/DSU

Physical Characteristics

Height: 1.6"
Width: 6.5"
Depth: 8.3"
Form Factor:
- Desktop
- Wall Mountable
Weight (Approximate): 1.50 lb

Interfaces/Ports

Serial Port: Yes

Other

Certifications & Standards:
- FCC Part 15 Class A
- FCC Part 68
- UL and CSA
Additional Information:
- Provides cost-effective method fortermination of DDS services
- Slim packaging can be installed on the desktop, mounted on wall, or housed in the ADTRAN RM10AC rackmount chassis
- Internal power supply
- Can be used for point-to-point or multi-point applications
- Easy to configure; all options set by easily accessible DIP switches
- Multiple test and diagnostic features
- OPTIONS: Set by dip switch - LOOP RATE: 56 or 64 kbps - CS: On or follow RS - CD: On or Normal - SR: On or Normal - RDL: Enable or Disable - SCRAMBLER: Enable or disable

Power Description

Maximum Power Consumption: 2 W
Input Voltage: 115 V AC

Warranty

Limited Warranty: 5 Year

Extended Details

Barcode Discount

Adtran Networking Accessory Part #: 1200078L1 | SKU: 92597
