Additional Information
| Manufacturer | No |
|---|---|
| Model Name | DSU IQ |
| Product Condition | No |
General Information
- Product Type: DSU
- Brand Name: Adtran
- Manufacturer: Adtran

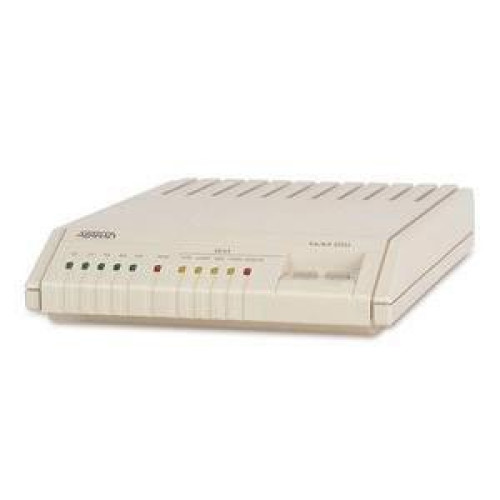

- Product Name: DSU 56/64 DDS CSU/DSU
Physical Characteristics
- Height: 1.6"
- Width: 6.5"
- Depth: 8.3"
- Form Factor:
- Desktop
- Rack-mountable
- Weight (Approximate): 1.50 lb
Interfaces/Ports
- Serial V.35 Interface: Yes
Other
- Package Contents:
- 8-pin to 8-pin modular cable
- User manual
- 8-pin to 8-pin modular cable
- User manual
- Certifications & Standards:
- FCC Part 15 Class A
- FCC Part 68
- UL and CUL
- Industry Canada CS03
- Additional Information:
- Provides cost-effective method for termination of DDS services
- Internal power supply
- Can be used for point to- point, multi-point, or Frame Relay applications
- Easy to configure; all options set by easily accessible DIP switches
- Multiple test and diagnostic features
- Receiver Sensitivity: -45dB at all rates<br>
- Options:<br> - Set by DIP switch<br> - Loop Rate: 56 or 64 Kbps<br> - CTS: On or Normal<br> - CTS Delay: Short or Long (DSU 56/64)<br> - CD: On or Normal<br> - DSR: On or Normal<br> - Scrambler: On or Off<br> - Anti-Stream: On or Off (DSU 56/64)<br> - RDL: Enable or Disable<br>
- Line Requirements:<br> - Loop transmission parameters as defined in:<br> - AT&T PUB 62310: Dedicated DDS
Power Description
- Maximum Power Consumption: 4 W
- Input Voltage: 115 V AC
Warranty
- Limited Warranty: 5 Year
