Adtran Total Access 1500 Data Networking
Part #: 1180408L1 | SKU: 40140

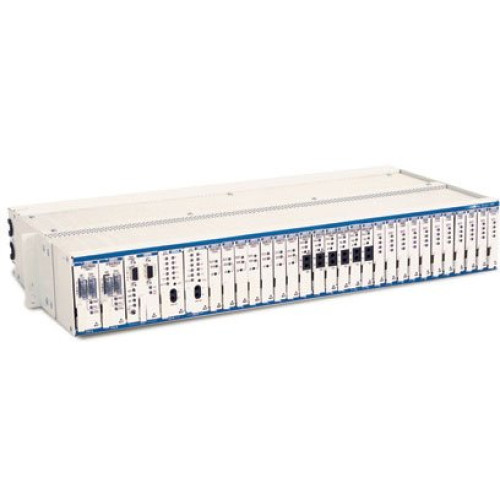

The Adtran Total Access 1500 is a carrier-class, multiservice access platform for deploying narrowband services from TDM network access. A compact, versatile platform, Total Access 1500 integrates the functionality of many carrier products into a single high-density chassis. Total Access 1500s small footprint (2U-high mounting) makes it the perfect choice for integrated communications service providers such as ILECs, CLECs, and ISPs who need to deploy services from crowded Remote Terminals (RTs), Central Offices (COs), or Co-Location (COLO) facilities.

Adtran Total Access 1500 Data Networking

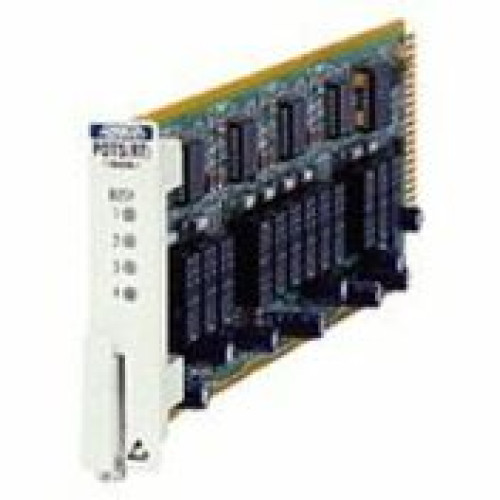

Part Details: Adtran Total Access 1500 Quad R-POTS Access Module - 4 x POTS

Need a different version of the Adtran Total Access 1500 Accessory? View all 33 configurations

Additional Information

Manufacturer	No
Model Name	Total Access 1500
Product Condition	No

Total Access 1500 Specs (pdf)

General Information

Product Type: Interface Module
Brand Name: Adtran
Manufacturer: Adtran
Product Model: 1180408L1
Product Name: Total Access 1500 Quad R-POTS Access Module
Product Line: Total Access

Technical Information

Application/Usage: Data Networking

Physical Characteristics

Dimensions: 3" Height x 0.7" Width x 9.7" Depth
Weight (Approximate): 1 lb
Form Factor: Hot-swappable

Interfaces/Ports

Interfaces/Ports: 4 x POTS
Interfaces/Ports Details: 4 x RJ-11 POTS

Other

Certifications & Standards:
- UL
- NEBS
Additional Information:
- Provides PCM voice interface (digital), with µ-law 255 data encoding/decoding
- V.90 Modem compliant
- Total Access 1500 can terminate up to five individual T1s, using copper facilities to provide diverse network routing and protection
- The unit is intended to interface a VF channel to the remote end of a two wire POTS circuit
- The Quad R-POTS provides four independent POTS interfaces

Controls/Indicators

Status Indicators:
- LEDs:
- GREEN - Indicates ringing active/busy
- OFF - Indicates unit is idle
- Signal States:
- Loopstart

Environmental Conditions

Humidity: Up to 95% Non-condensing Relative Humidity
Temperature:
- -40°F (-40°C) to 149°F (65°C) Operating
- -40°F (-40°C) to 185°F (85°C) Storage

Warranty

Limited Warranty: 10 Year
