Adtran Total Access 1500 Accessory
Part #: 1180402L1 | SKU: 92907

The Adtran Total Access 1500 is a carrier-class, multiservice access platform for deploying narrowband services from TDM network access. A compact, versatile platform, Total Access 1500 integrates the functionality of many carrier products into a single high-density chassis. Total Access 1500s small footprint (2U-high mounting) makes it the perfect choice for integrated communications service providers such as ILECs, CLECs, and ISPs who need to deploy services from crowded Remote Terminals (RTs), Central Offices (COs), or Co-Location (COLO) facilities.

Adtran Total Access 1500 Accessory

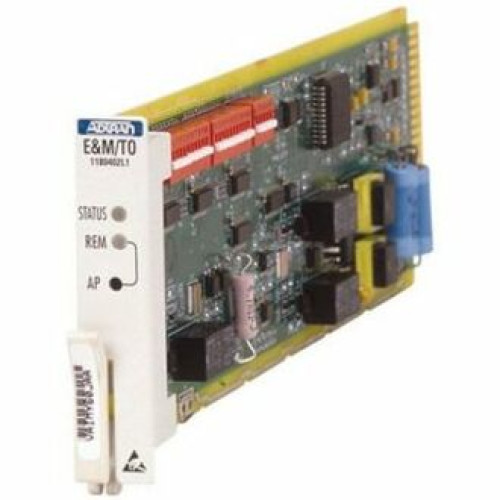

Part Details: Adtran Total Access E&M/TO Expansion Module - 1 x E&M

Need a different version of the Adtran Total Access 1500 Accessory? View all 33 configurations

Additional Information

Manufacturer	No
Model Name	Total Access 1500
Product Condition	No

Total Access 1500 Specs (pdf)

General Information

Product Type: Expansion Module
Brand Name: Adtran
Manufacturer: Adtran
Product Model: 1180402L1
Product Name: Total Access E&M/TO Expansion Module
Product Line: Total Access

Technical Information

Application/Usage: Data Networking

Physical Characteristics

Dimensions: 3" Height x 0.7" Width x 9.7" Depth
Weight (Approximate): 1 lb

Interfaces/Ports

Interfaces/Ports: 1 x E&M
Interfaces/Ports Details: 1 x E&M

Other

Compatibility:
- Total Access 750 chassis
- Total Access 1500 chassis
- Total Access 750 chassis
- Total Access 1500 chassis
Additional Information:
- 600W (four-wire) or 600W + 2.15 mf (two-wire) VF interface with DC isolation
- Provisioning by onboard switches or craft interfaces
- Dial pulse distortion correction option
- Up to 9.0 dBm transmit and receive attenuation adjustable in 0.1 dB increments
- Digital loopback to the network,via site manager or craft interface
- Meets the requirements of NEBS Level 3 and UL 1950

Warranty

Limited Warranty: 10 Year
