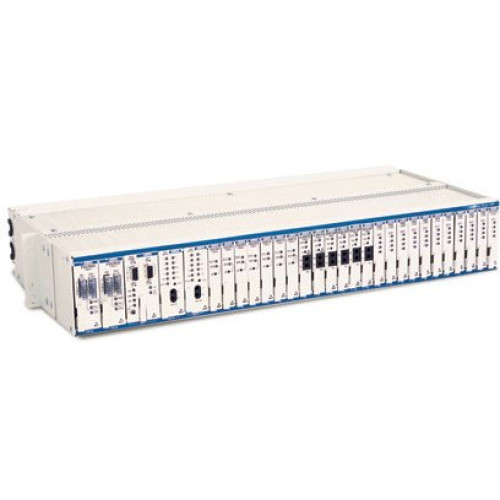

Adtran Total Access 1500 Data Networking
Part #: 1180214L2 | SKU: 168347

The Adtran Total Access 1500 is a carrier-class, multiservice access platform for deploying narrowband services from TDM network access. A compact, versatile platform, Total Access 1500 integrates the functionality of many carrier products into a single high-density chassis. Total Access 1500’s small footprint (2U-high mounting) makes it the perfect choice for integrated communications service providers such as ILECs, CLECs, and ISPs who need to deploy services from crowded Remote Terminals (RTs), Central Offices (COs), or Co-Location (COLO) facilities.

Adtran Total Access 1500 Data Networking

Part Details: Adtran Total Access 1500 Dual 2-Wire FXS/GT Access Module - 2 x T1

Need a different version of the Adtran Total Access 1500 Accessory? View all 33 configurations

Additional Information

Manufacturer	No
Model Name	Total Access 1500
Product Condition	No

Total Access 1500 Specs (pdf)

General Information

Product Type: Voice Module
Brand Name: Adtran
Manufacturer: Adtran
Product Model: 1180214L2
Product Name: Total Access 1500 Dual 2-Wire FXS/GT Access Module

Technical Information

Application/Usage: Voice

Physical Characteristics

Dimensions: 3.1" Height x 0.6" Width x 10.1" Depth
Weight (Approximate): < 1 lb

Interfaces/Ports

Interfaces/Ports: 2 x T1 WAN
Interfaces/Ports Details:
- 2 x T1 WAN
- 1 x DB-9 Female Console RS-232 Management

Other

Compatibility:
- Adtran Total Access 1500 Chassis
- Adtran Total Access 1500 Chassis
Certifications & Standards:
- UL 60950
- NEBS Level 3
- FCC 47CFR Part 15
- Class A
Additional Information:
- Current Draw: 0.077 amps maximum @ -48 VDC
- Heat Dissipation:2.96 watts maximum

Environmental Conditions

Humidity: 95% Maximum Non-condensing Relative Humidity
Temperature:
- -40°F (-40°C) to 149°F (65°C) Operating
- -40°F (-40°C) to 185°F (85°C) Storage

Management & Protocols

Management:
- Telnet
- SNMP
Protocols: SNMP

Controls/Indicators

Status Indicators:
- Status 1
- Status 2

Media & Performance

Data Transfer Rate: 1.54 Mbps

Extended Details
